Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

TE Connectivity AMP Connectors 142270-1

SHUNT MOD.IV OPEN-TOP 2POS

1.24

TE Connectivity AMP Connectors 382575-3

CONN MINI-SHUNT 2MM 2POS GOLD

0.97

Molex 15-29-1026

CONN SHUNT OPEN TOP .100 GOLD

0.81

Molex 15-29-1027

CONN SHUNT CLOSED TOP .100 GOLD

0.78

TE Connectivity AMP Connectors 142270-3

CONNECTOR SHUNT 2 P

0.76

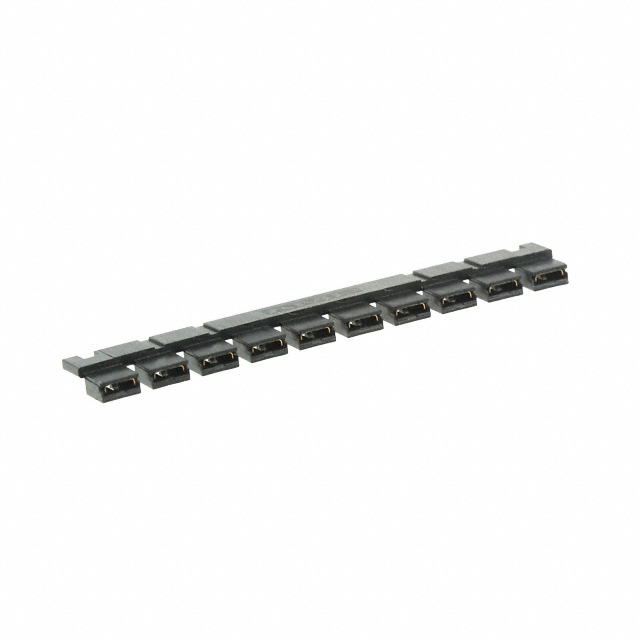

Samtec, Inc. MNT-103-BK-T

.100 C.L. SHUNT STRIP

0.71

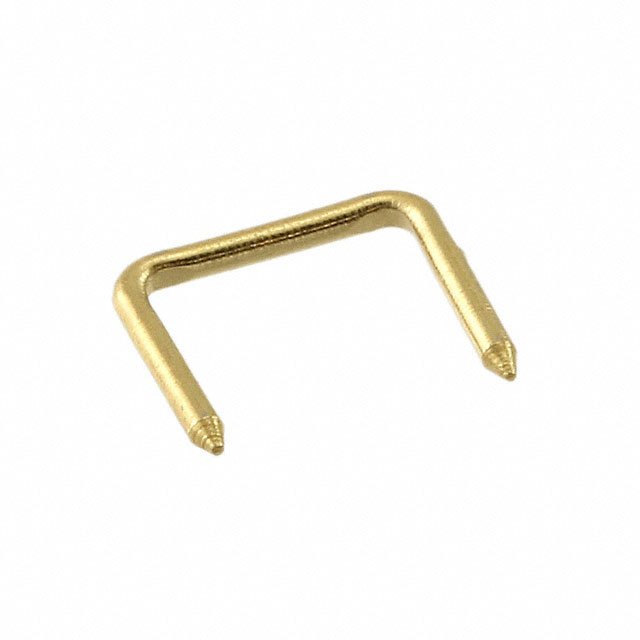

Mill-Max Manufacturing Corp. 3360-1-14-15-00-00-08-0

CIRCUIT PIN JUMPER .025"D .200"L

0.66

Aries Electronics ML-100

CONN MINI LINK JUMPER

0.64
