Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

Mill-Max Manufacturing Corp. 999-11-110-10-000000

JUMPER NON-INSULATED MALE .100"

0.61

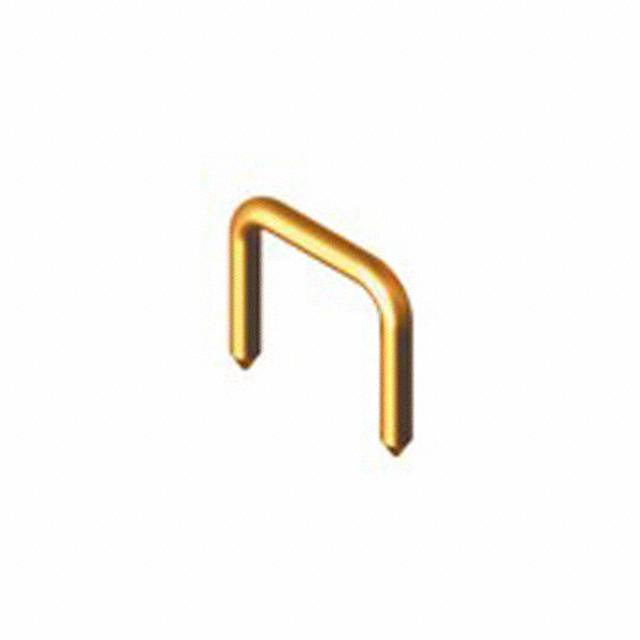

Keystone Electronics 1430-1

PIN SHORTING .200"DIA

0.57

Molex 0015291025

CONN SHUNT CLOSED TOP .100 GOLD

0.56

3M 929950-00

SHORTING JUMPER UNPLATED BLK

0.5

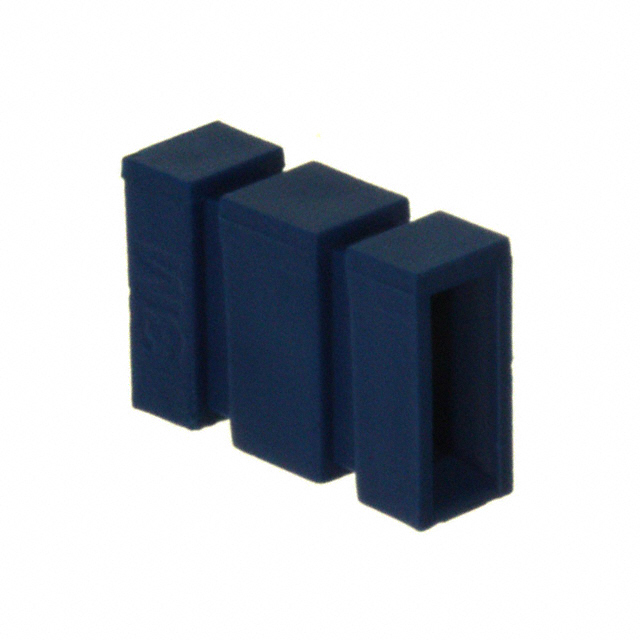

3M 929955-06

SHORTING JUMPER GLD/NICKEL BLUE

0.48

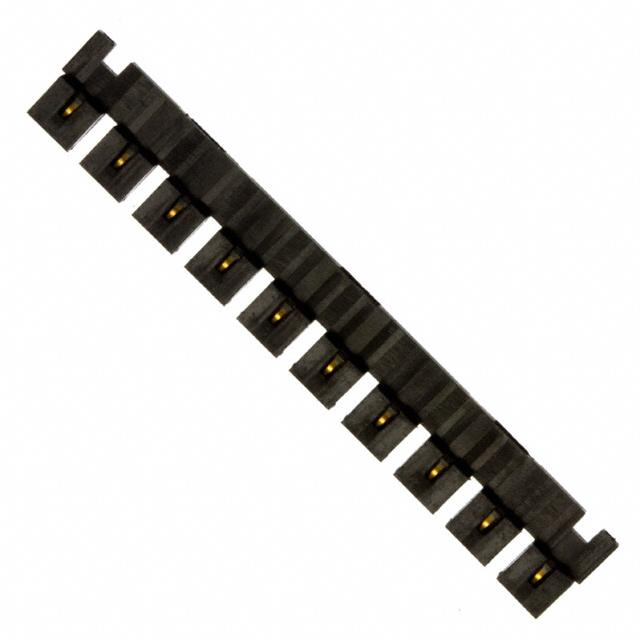

TE Connectivity AMP Connectors 382575-2

SHUNT 2MM 15AU 10PC = 1 STICK

0.44

Samtec, Inc. SNT-100-BK-G-H

CONN SHUNT 2POS

0.36

Samtec, Inc. 2SN-BK-G

SHUNT JUMPER

0.33
