Scale Dials

Scale Dials are a removable device with a face that is marked in predefined units to indicate the degree that a shaft has been turned. The knobs have a shaft size of 0.125” (3.18 mm), 0.236” (6.00 mm), or 0.250” (6.35 mm) with the number of turns being 1, 10, 11, 15, 20, 21, 30, or 100.

---

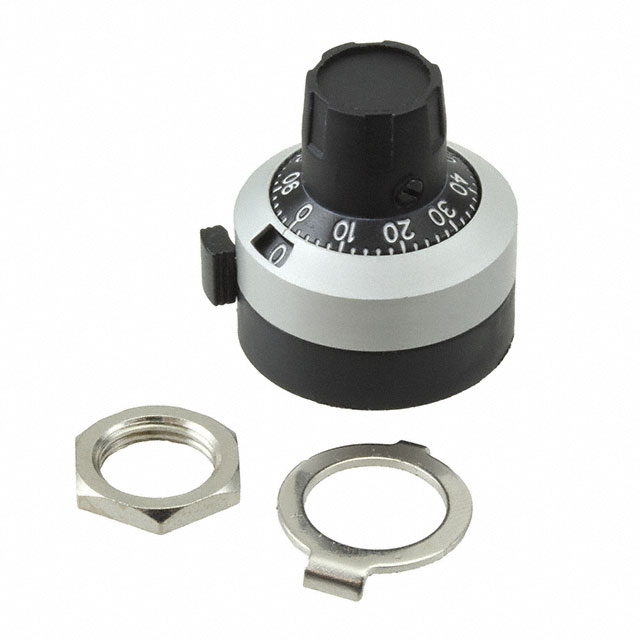

TT Electronics/BI 2607S

SCALE DIAL 0.250" SHAFT 15 TURN

18.65

Littelfuse Inc. P0400-12

FACE PLATE 0.05-1 SEC REV. B

14.58

Ohmite ACD46 6.35-15

COUNTING DIAL 15 TURN 46MM

13.84

Bourns, Inc. H-22-6M-SB

DIAL SCALE 15 TURN CONCENTRIC

10.04

Bourns, Inc. H-22-3A

DIAL SCALE 15 TURN CONCENTRIC

10.04

Bourns, Inc. H-516-3A

HARDWARE

7.06

Littelfuse Inc. P0400-86

FACE PLATE 0.1 TO 10 MIN.REV.G

4.82

Littelfuse Inc. P0400-83

FACE PLATE 1-60 SEC. REV. H

4.82
