Trimmer Potentiometers

Trimmer potentiometers allow for precise manual adjustment of an in-circuit resistance value. Also known as trimpots, they are available in bottom, side or top adjustment and may allow for single or multiple turns of actuation. They range in value from 10 Ω to 5 MΩ of resistance and 5% to 30% of value tolerance in surface mount, through-hole, chassis mount, and panel mount configurations.

---

Bourns, Inc. 3386H-1-204LF

TRIMMER 200KOHM 0.5W PC PIN SIDE

1.6

Bourns, Inc. 3386P-1-205LF

TRIMMER 2M OHM 0.5W PC PIN TOP

1.6

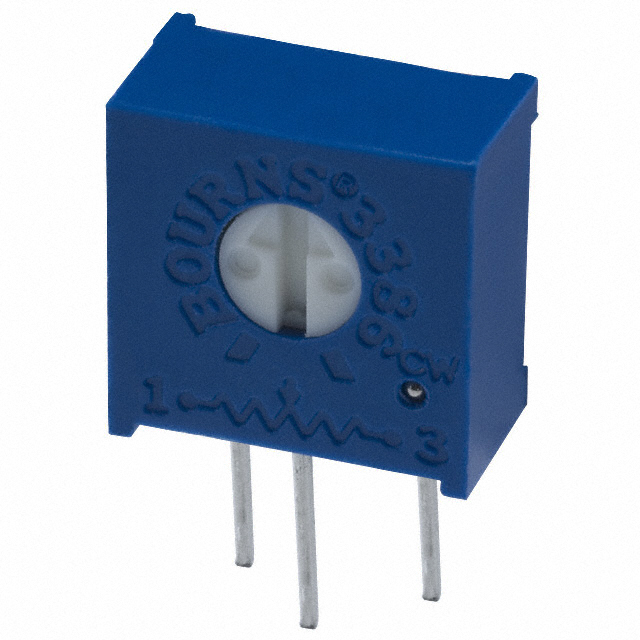

Bourns, Inc. 3386R-1-103LF

TRIMMER 10K OHM 0.5W PC PIN TOP

1.72

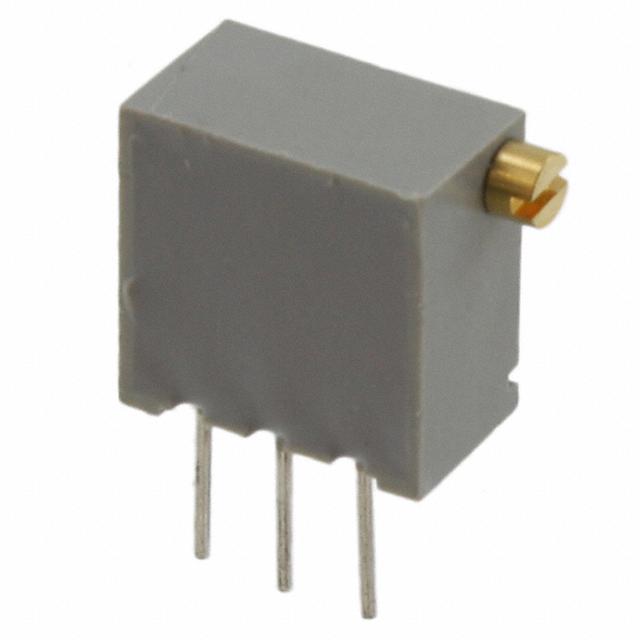

Nidec Copal Electronics CT20EP203

TRIMMER 20K OHM 0.5W PC PIN SIDE

1.78

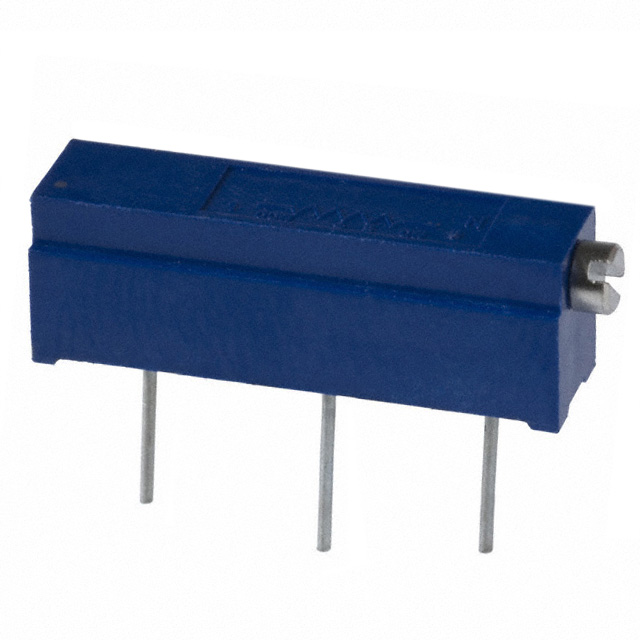

TT Electronics/BI 68XR100LF

TRIMMER 100 OHM 0.5W PC PIN SIDE

1.78

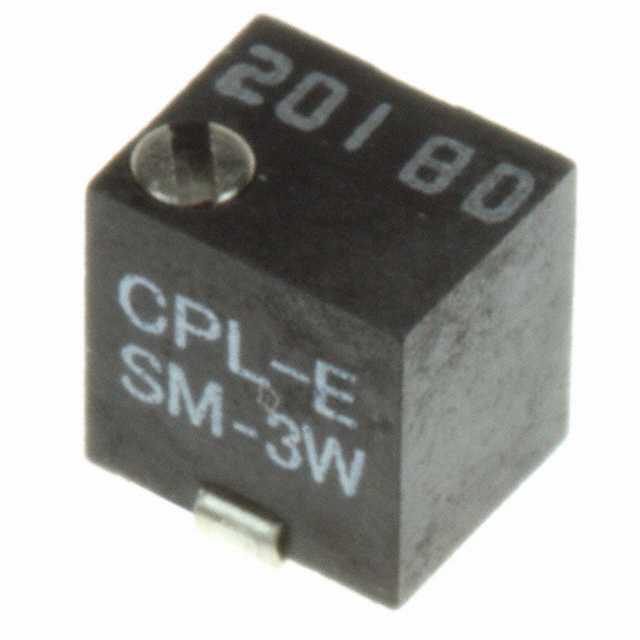

Nidec Copal Electronics SM-3TW201

TRIMMER 200OHM 0.125W J LEAD TOP

1.86

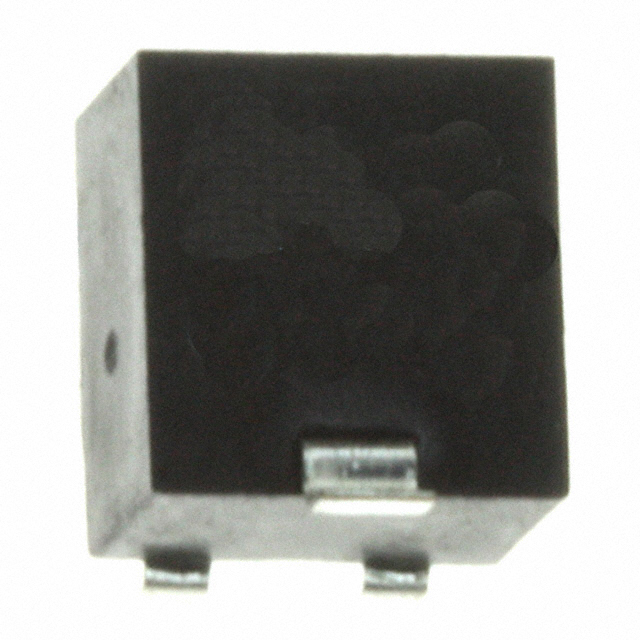

Bourns, Inc. 3214W-1-200E

TRIMMER 20 OHM 0.25W J LEAD TOP

0

Nidec Copal Electronics SM-42TX501

TRIMMER 500 OHM 0.25W GW TOP ADJ

0
