Trimmer Potentiometers

Trimmer potentiometers allow for precise manual adjustment of an in-circuit resistance value. Also known as trimpots, they are available in bottom, side or top adjustment and may allow for single or multiple turns of actuation. They range in value from 10 Ω to 5 MΩ of resistance and 5% to 30% of value tolerance in surface mount, through-hole, chassis mount, and panel mount configurations.

---

Bourns, Inc. 3386X-1-105TLF

TRIMMER 1M OHM 0.5W PC PIN SIDE

2.48

TT Electronics/BI 72PTR5KLF

TRIMMER 5K OHM 0.5W PC PIN TOP

2.44

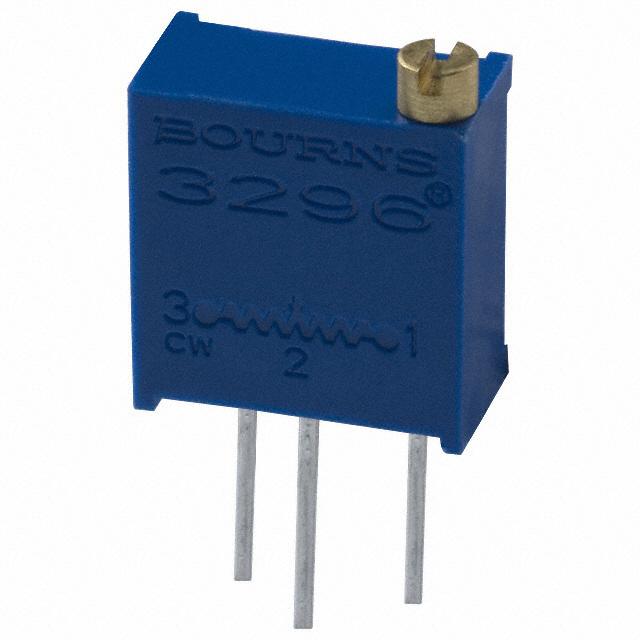

Bourns, Inc. 3296Y-1-500LF

TRIMMER 50 OHM 0.5W PC PIN TOP

3

Bourns, Inc. 3296X-1-105LF

TRIMMER 1M OHM 0.5W PC PIN SIDE

3

Vishay / Spectrol M43P502KB40

TRIMMER 5K OHM 0.75W PC PIN SIDE

3.2

Bourns, Inc. 3009P-1-501LF

TRIMMER 500OHM 0.75W PC PIN SIDE

3.27

TT Electronics/BI 93PR20KLF

TRIMMER 20K OHM 1W PC PIN TOP

3.27

Bourns, Inc. 3009P-1-102LF

TRIMMER 1K OHM 0.75W PC PIN SIDE

3.27
