RF Directional Coupler

RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.

---

Anaren XMC0204P2-30G

RF DIR COUPLER 2GHZ-4GHZ SMD

42.26

Anaren XMC0812F1-03G

RF DIR COUPLER 8GHZ-12GHZ SMD

30.84

Hirose Electric Co Ltd HDH-09010GID(31)

RF DIR COUPLER 8GHZ-11GHZ MODULE

612

Cinch Connectivity Solutions Midwest Microwave CPL-5216-20-SMA-79

RF DIR COUPLER 7GHZ-18GHZ

519.75

Cinch Connectivity Solutions Midwest Microwave CPL-5217-20-SMA-79

RF DIR COUPLER 12.4GHZ-18GHZ

540

Panasonic Electronic Components EHF-FD1736

RF DIR COUPLER 800MHZ

0

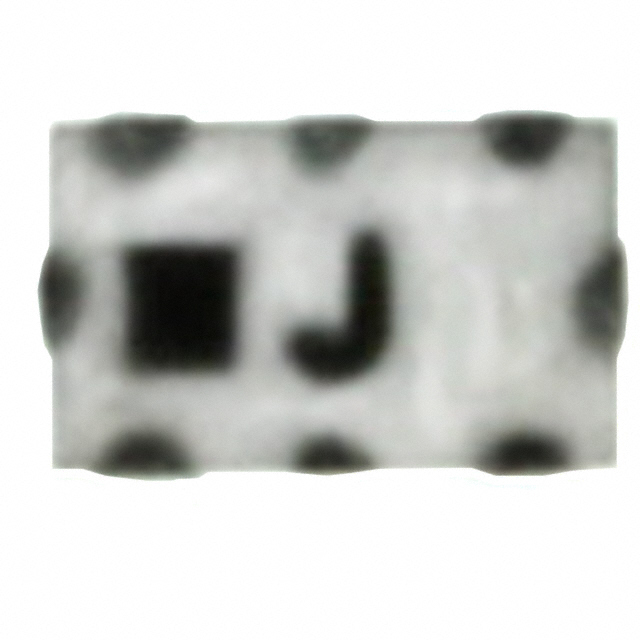

Panasonic Electronic Components EHF-FD1824

RF DIR COUPLER 880-915MHZ 0805

0

Panasonic Electronic Components EHF-FD1812D

RF DIR COUPLER 880-915MHZ 0805

0
