RF Directional Coupler

RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.

---

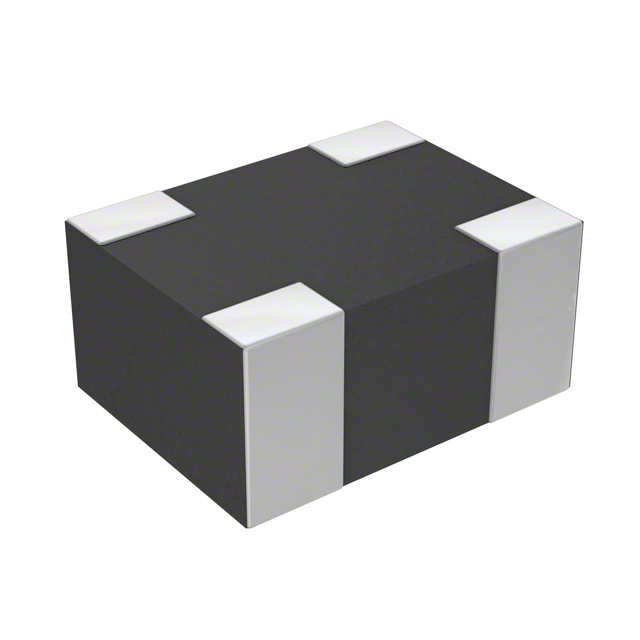

AVX Corporation CP0603B1620AWTR

RF DIR COUPLER 1.62GHZ 0603

0.24

AVX Corporation CP0603B1441CWTR

RF DIR COUPL 1.429-1.453GHZ 0603

0.24

AVX Corporation CP0603B0947CWTR

RF DIR COUPLER 935-960MHZ 0603

0.24

AVX Corporation CP0603D1034AWTR

RF DIR COUPLER 1.034GHZ 0603

0.24

AVX Corporation CP0603D0947AWTR

RF DIR COUPLER 935-960MHZ 0603

0.24

AVX Corporation CP0603D0942AWTR

RF DIR COUPLER 925-960MHZ 0603

0.24

AVX Corporation CP0805A0836CWTR

RF DIR COUPLER 824-849MHZ 0805

0.35

AVX Corporation CP0805A0836BWTR

RF DIR COUPLER 824-849MHZ 0805

0.35
