Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

Harwin Inc. M7686-05

CLOSED TOP JUMPER SOCKET

0.36

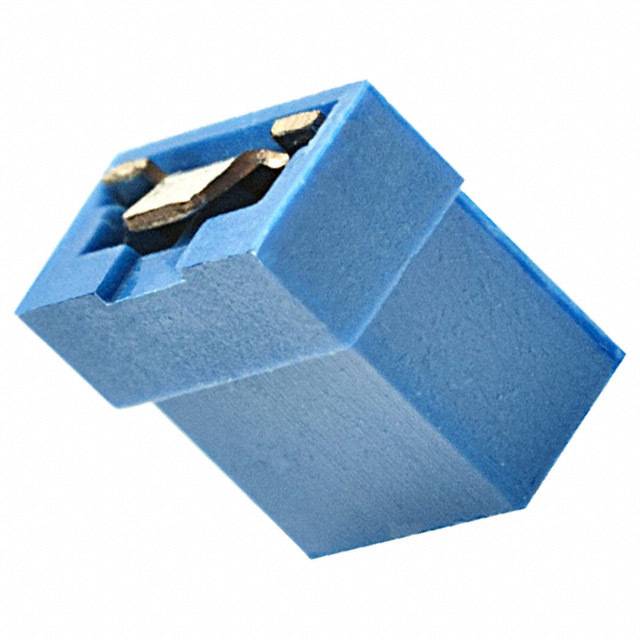

Harwin Inc. M22-1910005

CONN JUMPER SHORTING GOLD BLUE

0.33

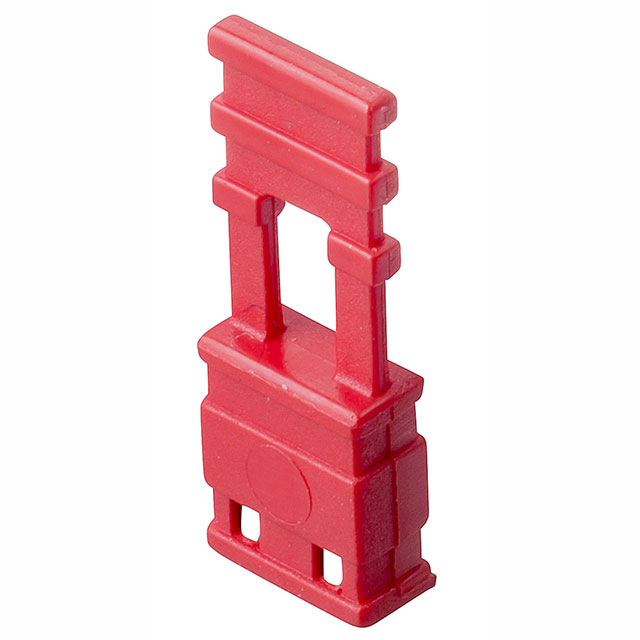

Harwin Inc. M7681-46

14MM JUMPER SKT W/HNDL RED

0.31

Sullins Connector Solutions NPN02SXNN-RC

CONN JUMPER SHORTING 2MM GOLD

0.13

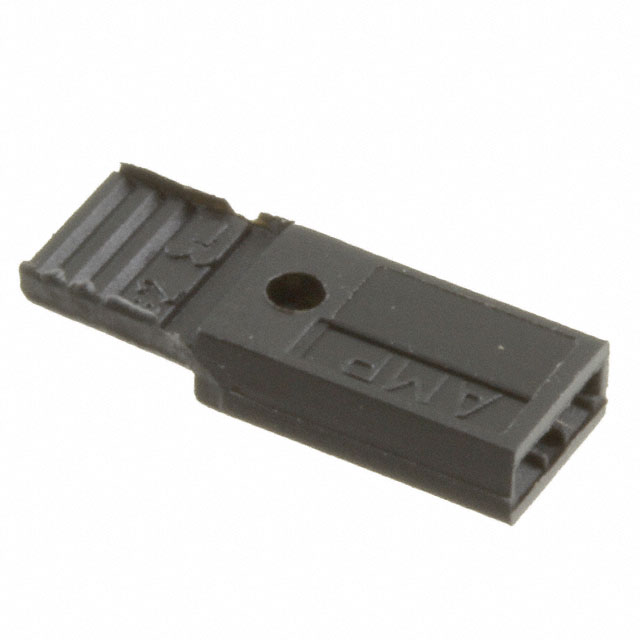

TE Connectivity AMP Connectors 880584-1

CONN POST SHUNTS 2POS 15GOLD

0.46

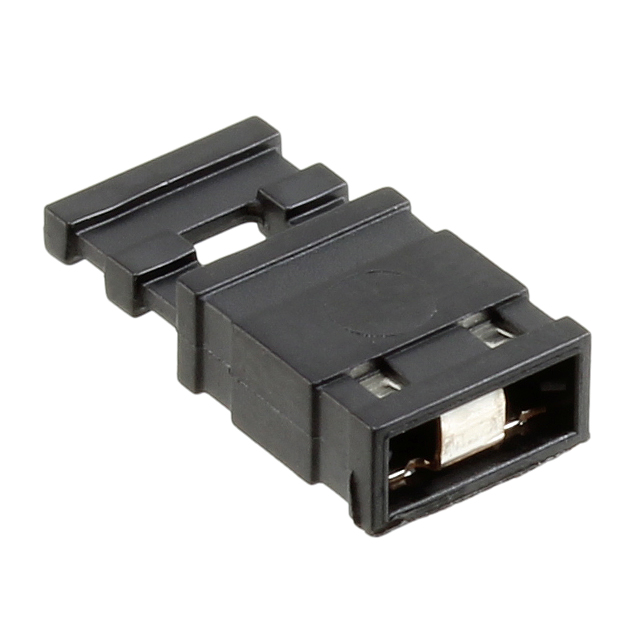

TE Connectivity AMP Connectors 881545-2

SHUNT LP W/HANDLE 2 POS 30AU

0.28

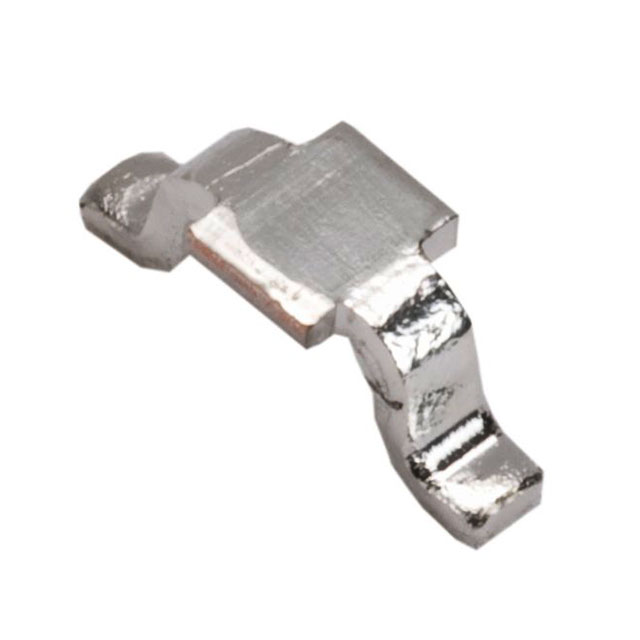

Harwin Inc. S1731-46R

JUMPER TIN SMD

0

Samtec, Inc. SNT-100-RD-G-H

SHUNT & JUMPERS

0.8
