Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

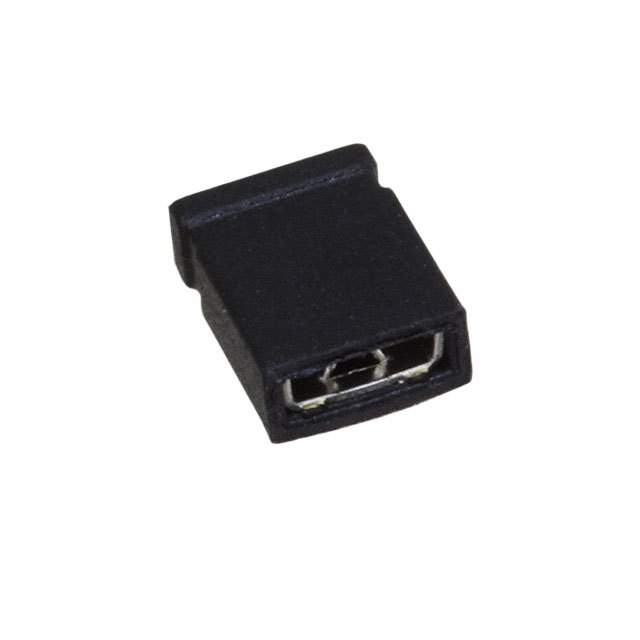

Adam Tech MSDA-G

SHUNT 2.54MM PITCH

0.18

Kycon, Inc. SX1100-B

CONN SHUNT BLACK OPEN TOP

0.1

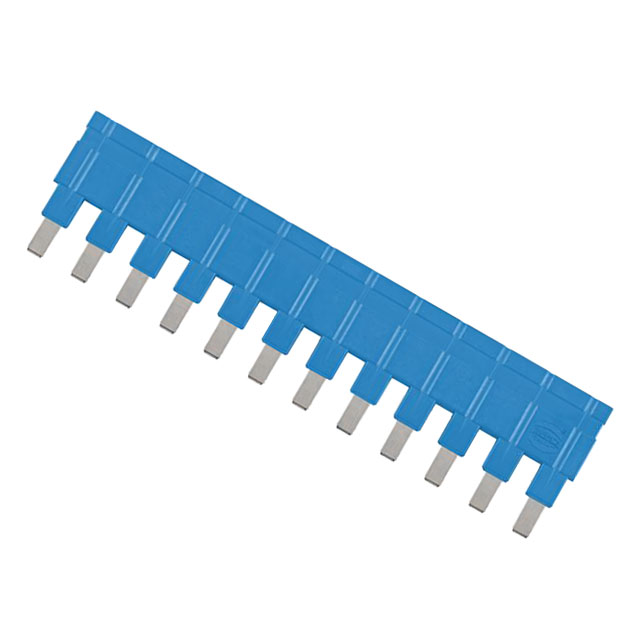

HARTING 09330009851

JUMPER ACROSS 1X12 BLUE 16A

14.37

Kycon, Inc. SX1100-A

CONN SHUNT BLACK CLOSED TOP

0.1

HARTING 09330009862

JUMPER ACROSS 1X12 BLACK 16A

14.37

HARTING 09330009840

JUMPER ACROSS 1X12 RED 16A

14.37

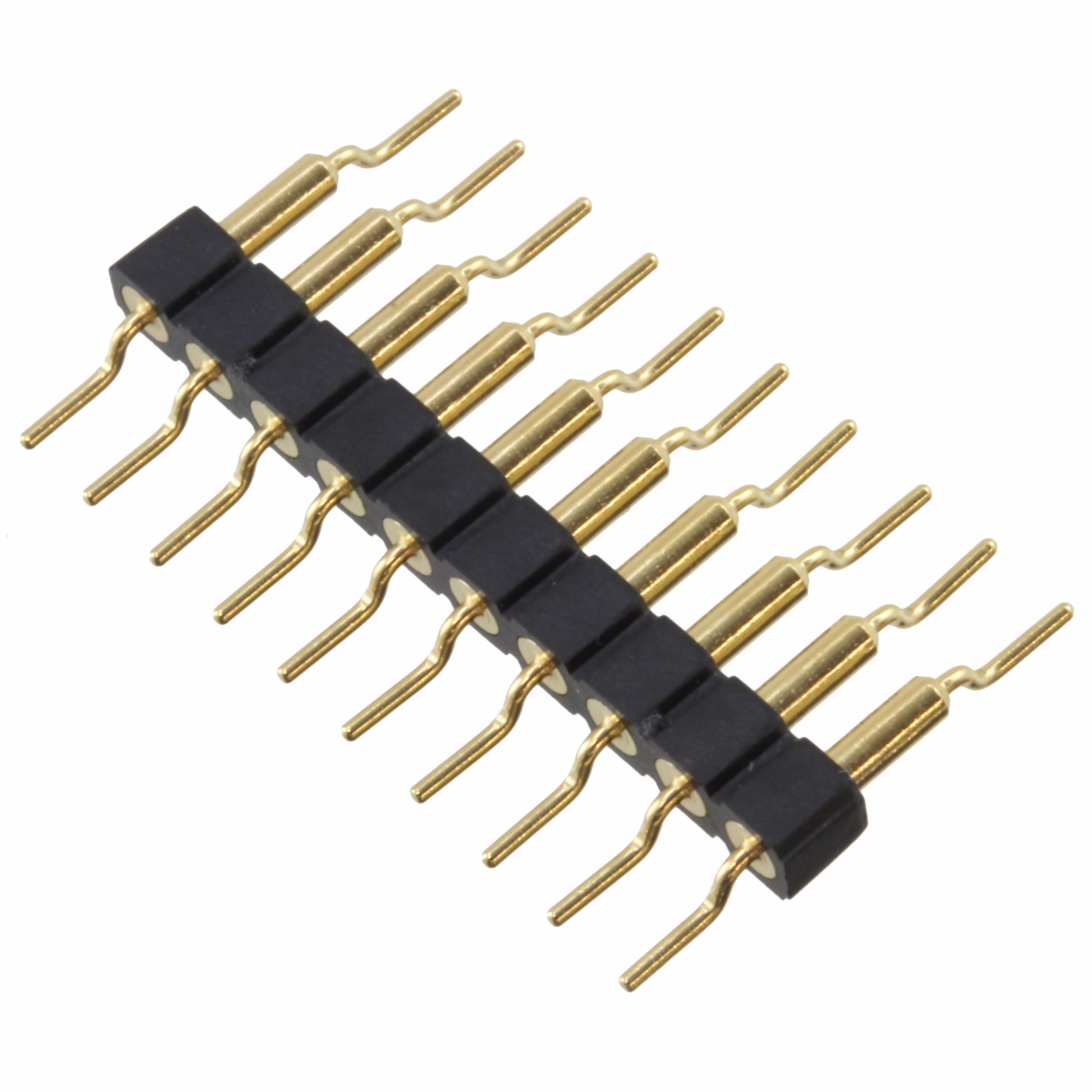

Mill-Max Manufacturing Corp. 339-10-110-40-000000

CONN SHUNT 10POS INSUL 2.54MM GD

8.67

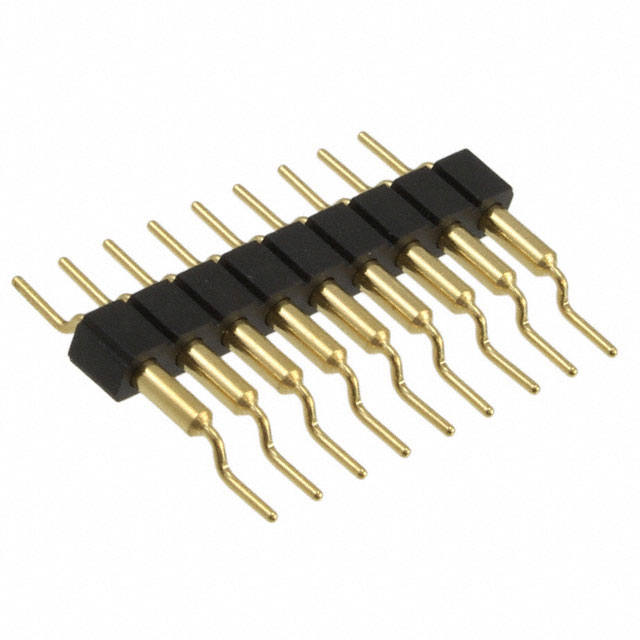

Mill-Max Manufacturing Corp. 339-10-109-40-000000

CONN SHUNT 9POS INSUL 2.54MM GLD

8.4
