Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

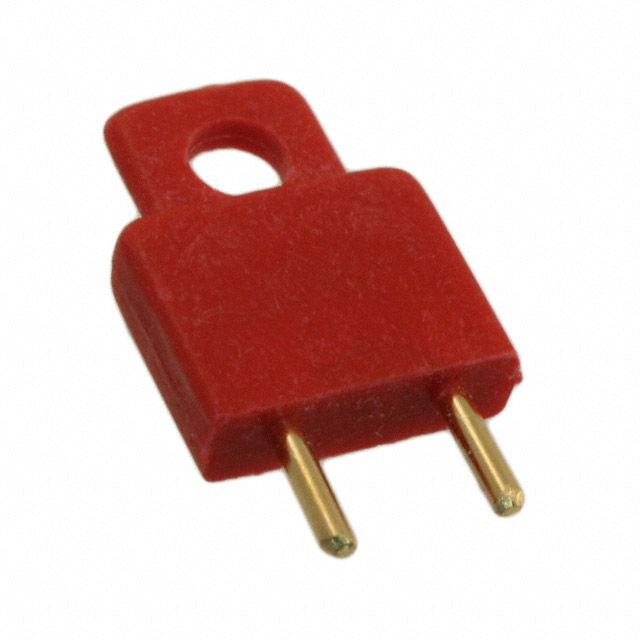

Keystone Electronics 1460R

PLUG SHORTING INSULATED RED

2.05

Samtec, Inc. MNT-108-BK-T

.100 C.L. SHUNT STRIP

1.6

Samtec, Inc. MNT-105-BK-G

CONN SHUNT 10POS

1.6

Mill-Max Manufacturing Corp. 999-11-220-10-000000

JUMPER INSULATED MALE .200" BK

1.55

TE Connectivity AMP Connectors 827914-3

2P SHUNTCONNECTOR ASSY

1.12

Samtec, Inc. MNT-105-BK-T

.100 C.L. SHUNT STRIP

1.07

Harwin Inc. D3086-97

CONN SHUNT 2 POS 5.08MM

1.02

Mill-Max Manufacturing Corp. 4000-0-14-15-00-00-03-0

JUMPER PIN

0.77
