Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

Samtec, Inc. MNT-103-BK-H

.100 C.L. SHUNT STRIP

1.42

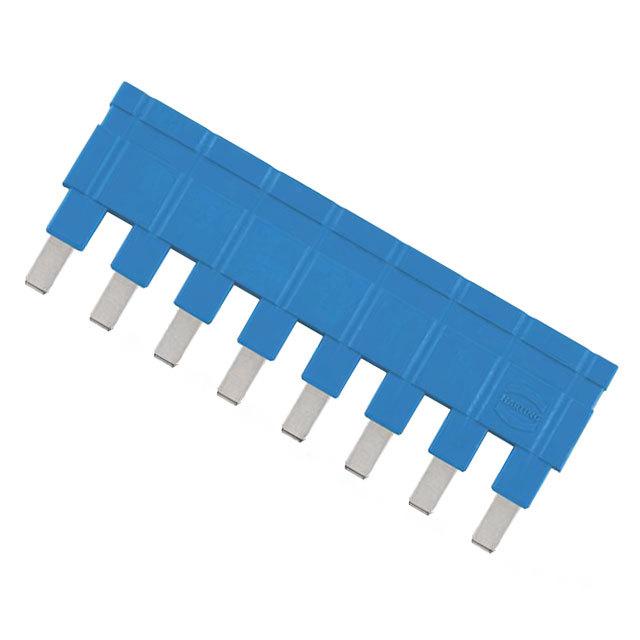

HARTING 09330009847

JUMPER ACROSS 1X8 BLUE 16A

7.1

HARTING 09330009836

JUMPER ACROSS 1X8 RED 16A

7.1

Samtec, Inc. MNT-108-BK-G

.100 C.L. SHUNT STRIP

2.57

Samtec, Inc. MNT-107-BK-G

.100 C.L. SHUNT STRIP

2.24

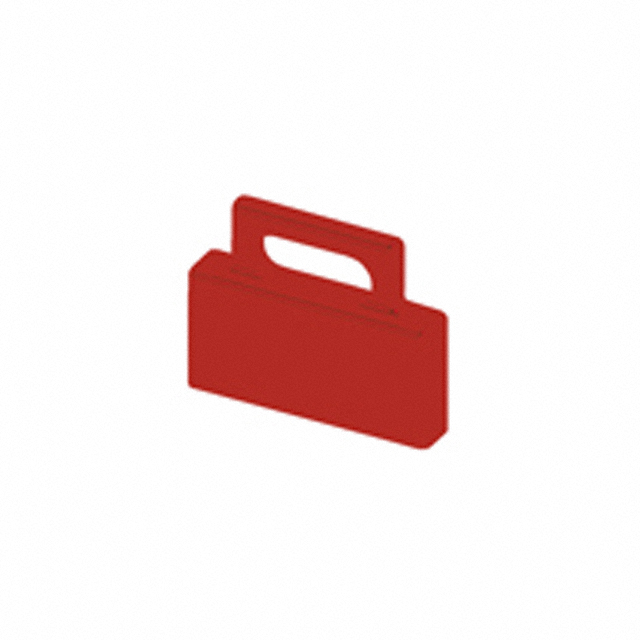

Keystone Electronics 1487R

JACK SHORTING INSULATED RED

2.05

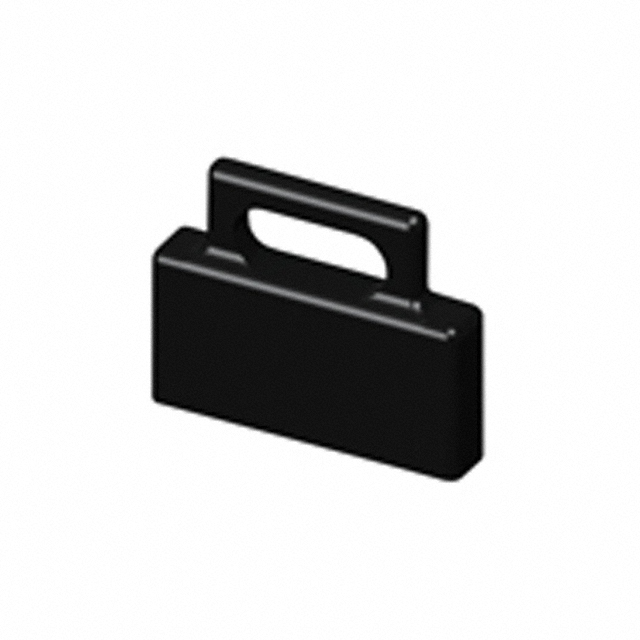

Keystone Electronics 1487B

JACK SHORTING INSULATED BLACK

2.05

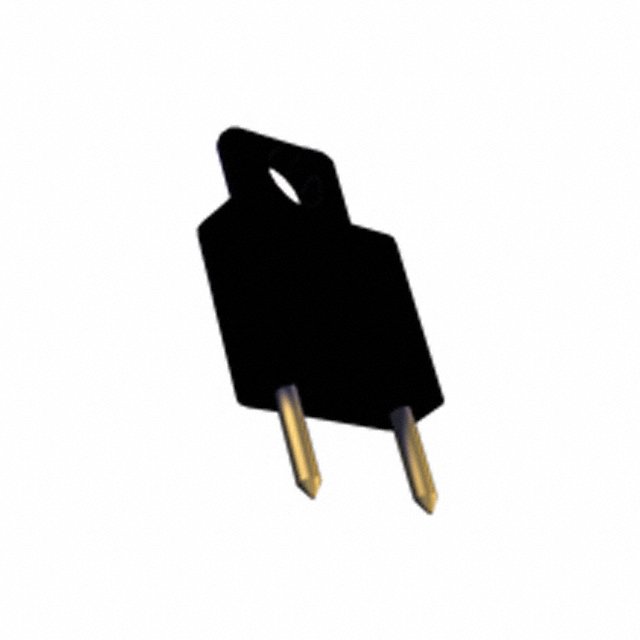

Keystone Electronics 1460B

PLUG SHORTING INSULATED BLACK

2.05
