Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

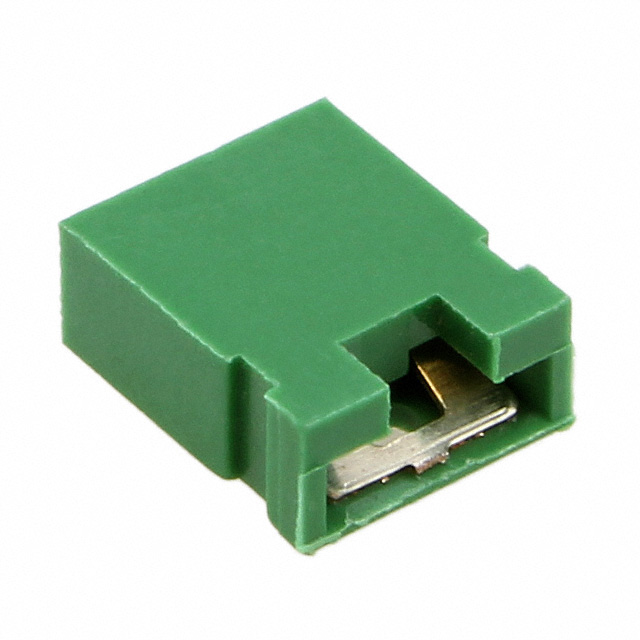

TE Connectivity AMP Connectors 142270-5

SHUNT MOD.IV OPEN-TOP 2POS

0.78

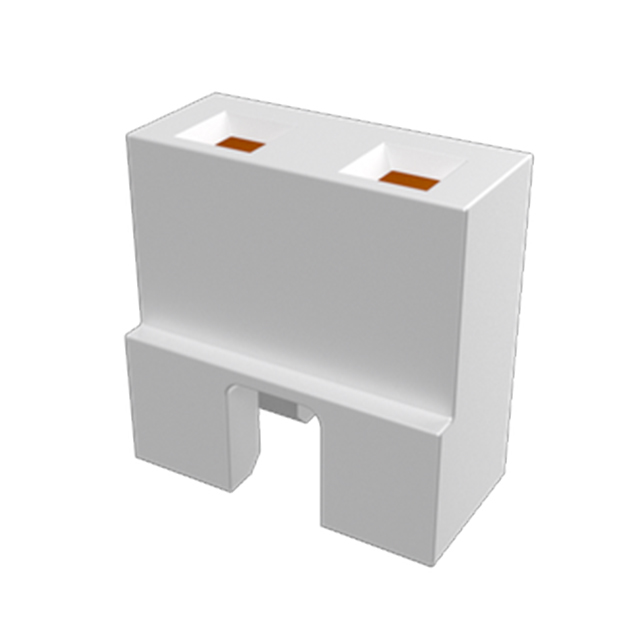

AVX Corporation 109296002260906

2 POS JUMPER 26MM

0.69

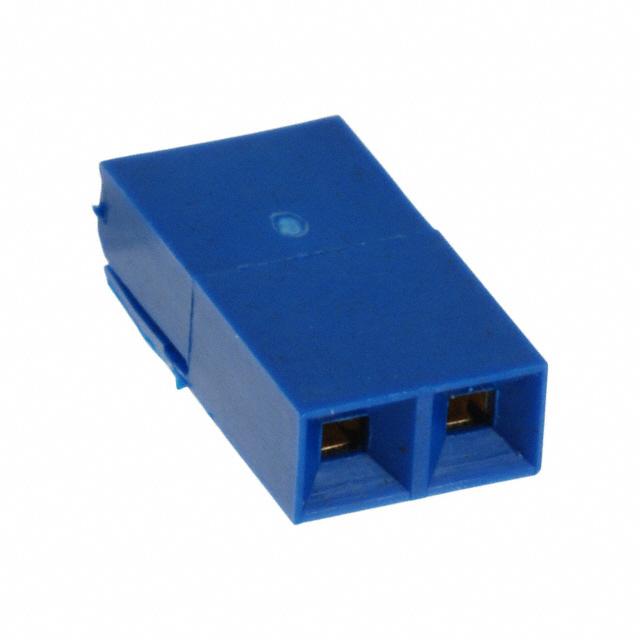

Hirose Electric Co Ltd A3-SP(B)

CONN JUMPER F 2 POS 2MM ST

0.45

Amphenol ICC (FCI) 71363-302LF

CONN SHUNT 2POS .100 HIGHBOX TIN

0.43

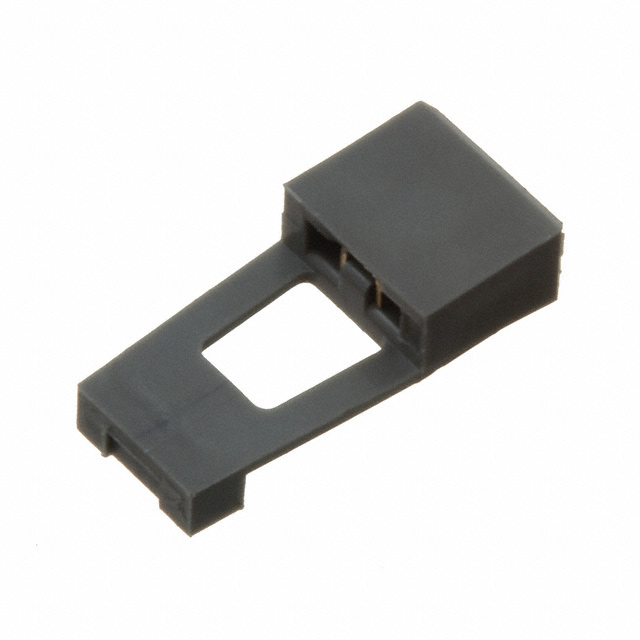

Amphenol ICC (FCI) 65474-010

MINI JUMP 2POS .100"

0.4

Adam Tech MSBG-04-G

GANG SHUNT 4P 2.54MM PITCH

0.33

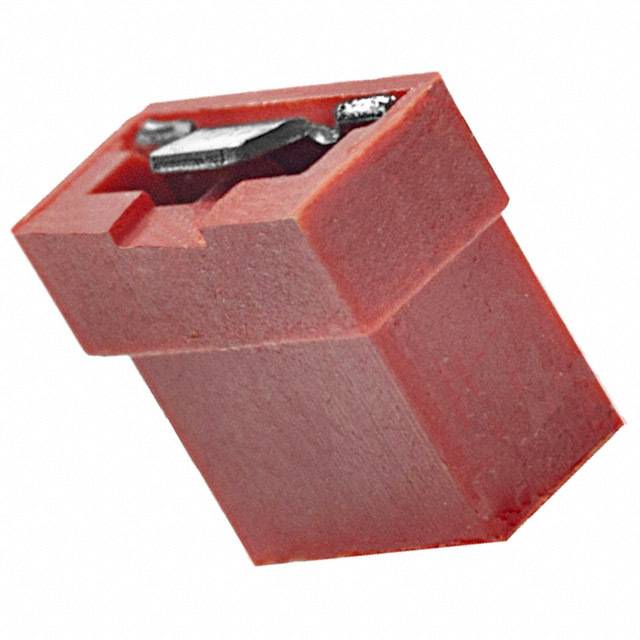

Harwin Inc. M22-1920046

CONN JUMPER SHORTING TIN RED

0.33

Harwin Inc. M7565-05

OPEN TOP JUMPER SOCKET

0.28
