Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

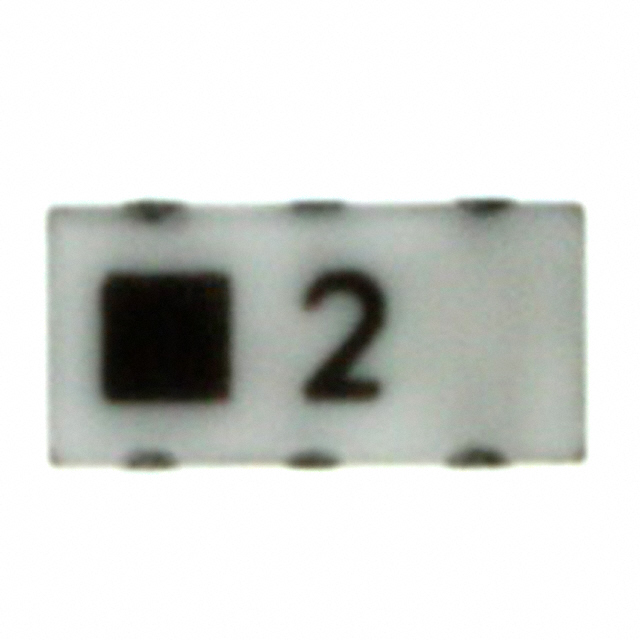

Panasonic Electronic Components EHF-2BD2450

BALUN 2.4GHZ-2.5GHZ 50/50 0805

0

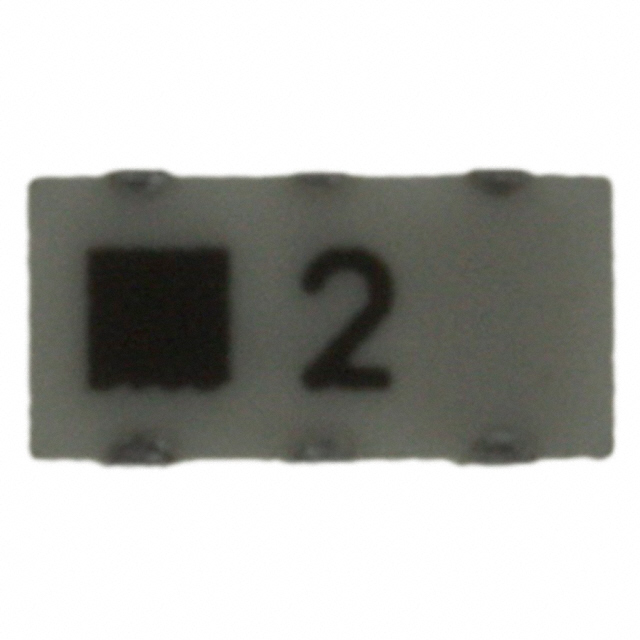

Panasonic Electronic Components EHF-2BD2060

BALUN 1.92GHZ-2.17GHZ 50/50 0805

0

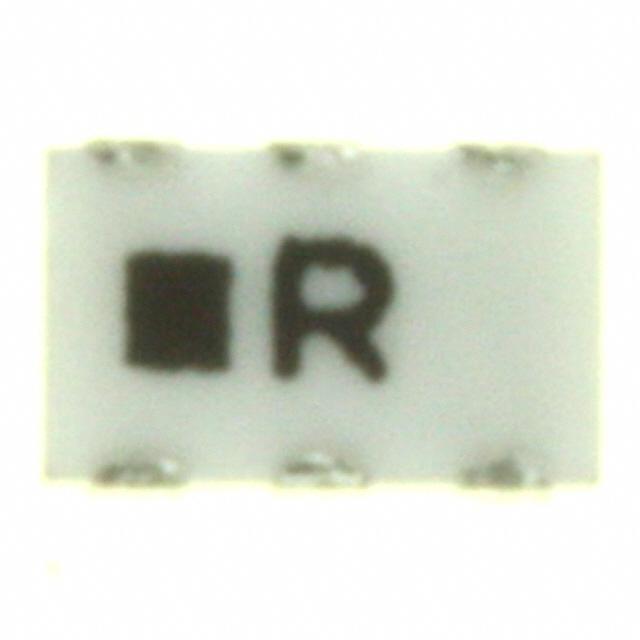

Panasonic Electronic Components EHF-2BE0920

BALUN 880MHZ-960MHZ 50/100 0805

0

Panasonic Electronic Components EHF-2BD1800

BALUN 1.7GHZ-1.9GHZ 50/50 0805

0

Panasonic Electronic Components EHF-1BG1800

BALUN 1.7GHZ-1.9GHZ 50/200 1206

0

Panasonic Electronic Components EHF-1BG0920

BALUN 880MHZ-960MHZ 50/200 1206

0

Panasonic Electronic Components EHF-1BE1800

BALUN 1.7GHZ-1.9GHZ 50/100 1206

0

Panasonic Electronic Components EHF-FD1619

BALUN 1.2GHZ-2.2GHZ 50/50 1206

0
