Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

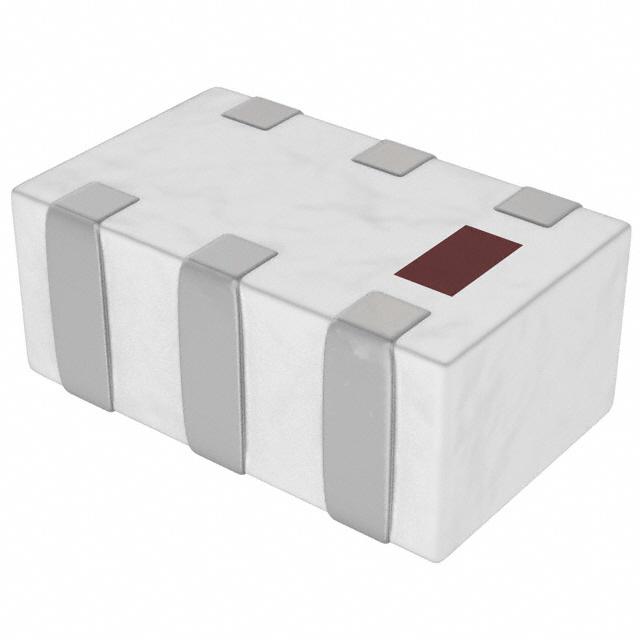

TDK Corporation HHM1595A1

BALUN 3GHZ-8GHZ 50/100 0805

0

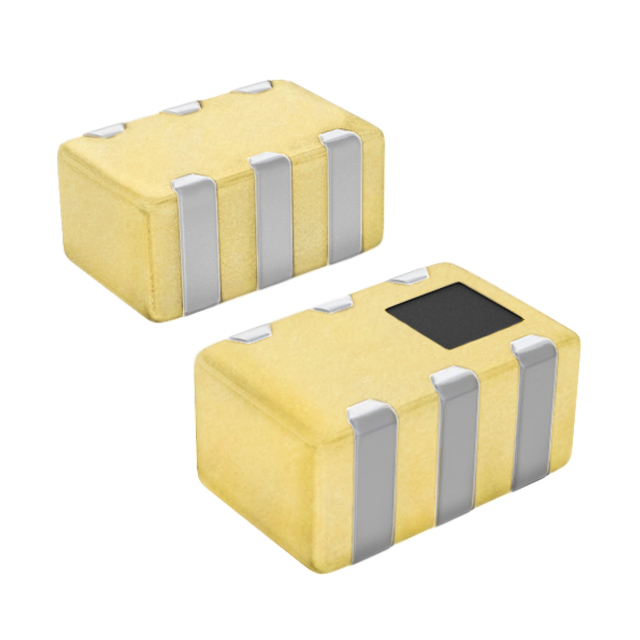

Johanson Technology Inc. 2450BM14G0011T

BALUN 2.4GHZ-2.5GHZ 0603

0.5

Johanson Technology Inc. 2450BL15B100E

BALUN 2.4GHZ-2.5GHZ 50/100 0805

0

Johanson Technology Inc. 1850BL15B050E

BALUN 1.7GHZ-2GHZ 50/50 0805

0.26
