Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

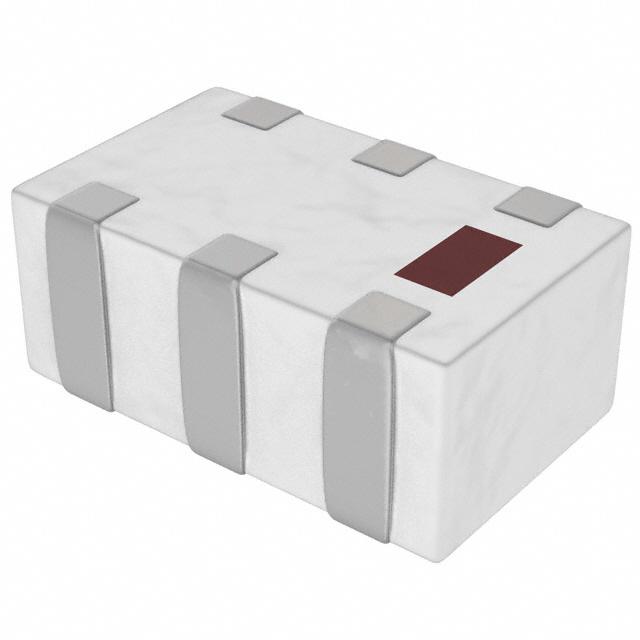

Johanson Technology Inc. 2450BM14E0003T

BALUN 2.4GHZ-2.5GHZ 0603

0.25

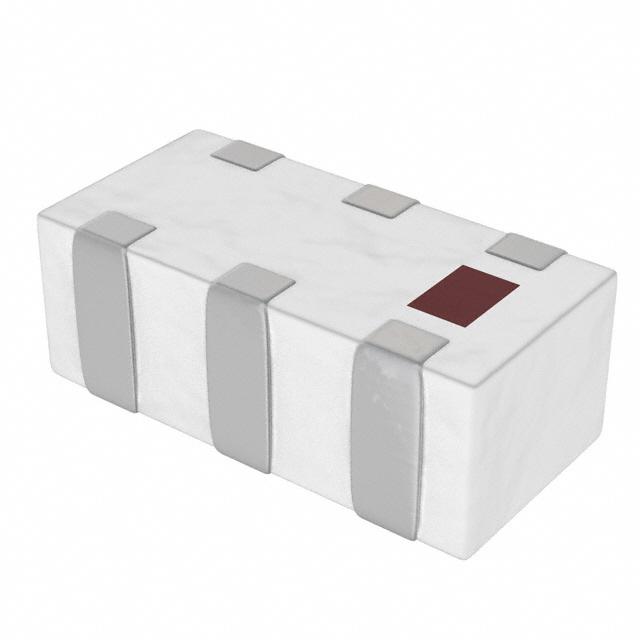

Johanson Technology Inc. 0868BM15C0001E

BALUN 863MHZ-873MHZ 0805

0.73

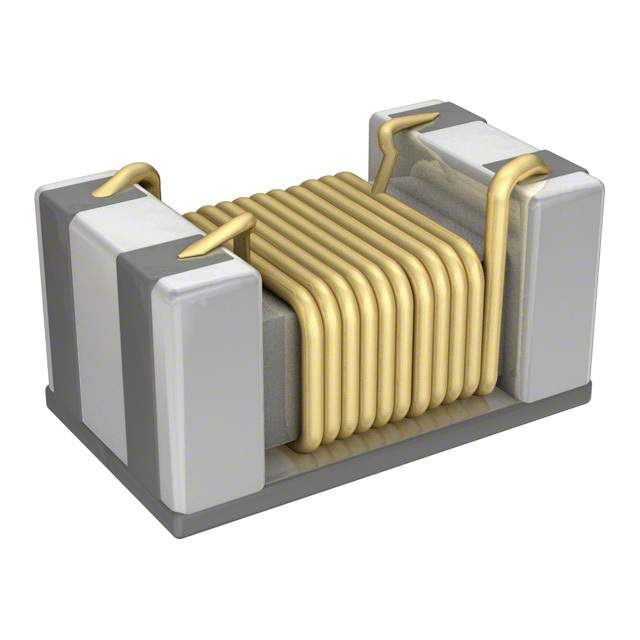

M/A-Com Technology Solutions MABA-007159-000000

BALUN 4.5MHZ-3GHZ 1:1 6SMD FLAT

0.87

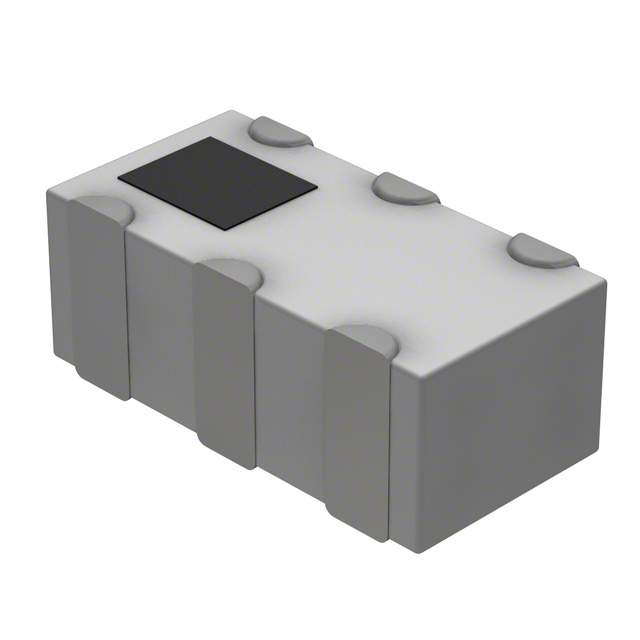

Johanson Technology Inc. 2450BL15B050E

BALUN 2.4GHZ-2.5GHZ 50/50 0805

0.36

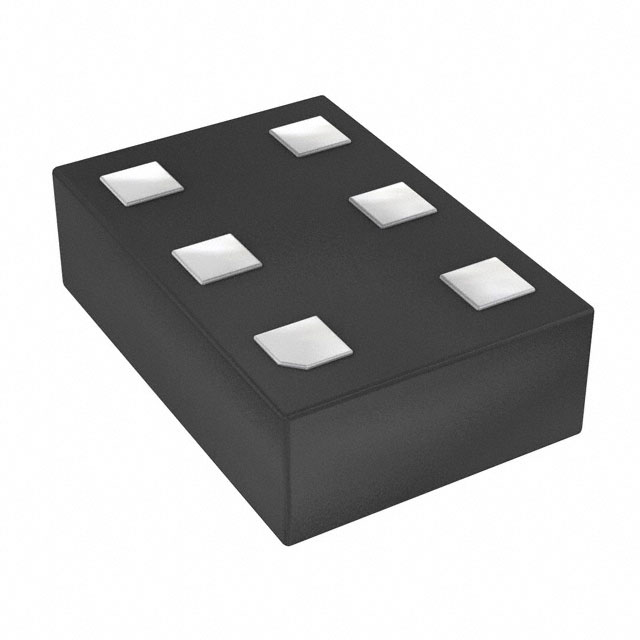

STMicroelectronics BALF-NRF01E3

BALUN 2.4GHZ-2.54GHZ 6XFLGA

0

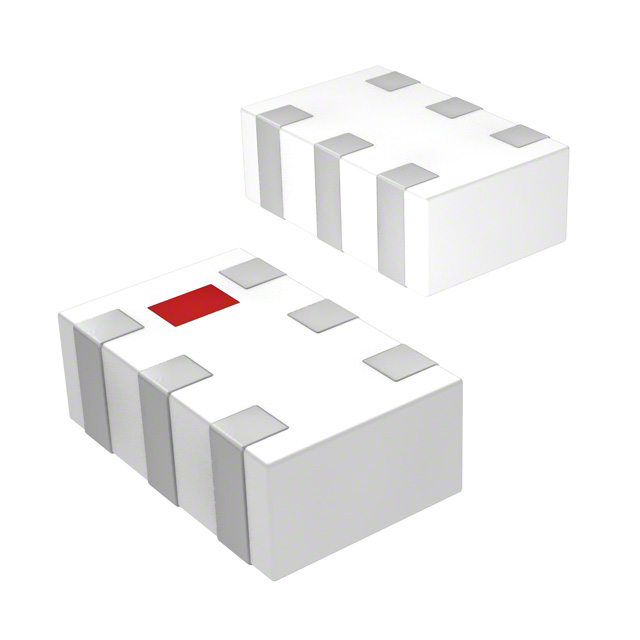

TDK Corporation ATB2012E-50012M-T01

BALUN 400MHZ-1.8GHZ 50/100 0805

0.26

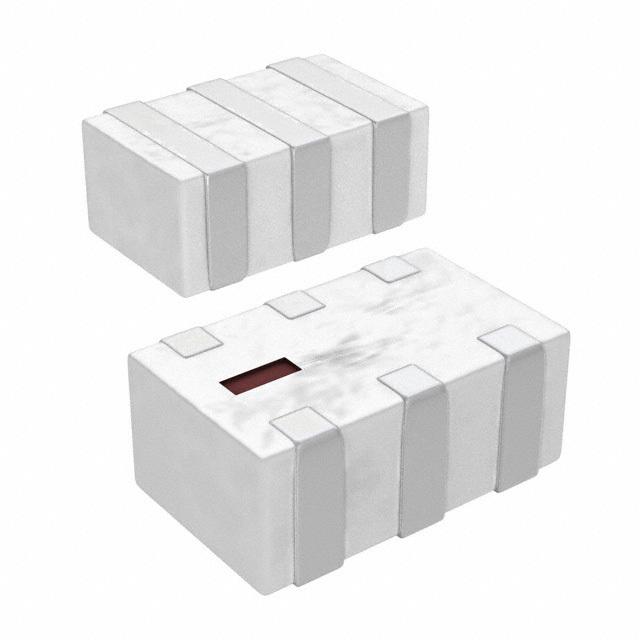

Wurth Electronics Inc. 748421245

BALUN 2.4GHZ-2.5GHZ 50/100 0805

1.26

TDK Corporation HHM1711E1

BALUN 2.3GHZ-2.7GHZ 50/100 0603

0
