Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

TDK Corporation ATB3225-75034CT

BALUN 1MHZ-100MHZ 3:4 1210

0

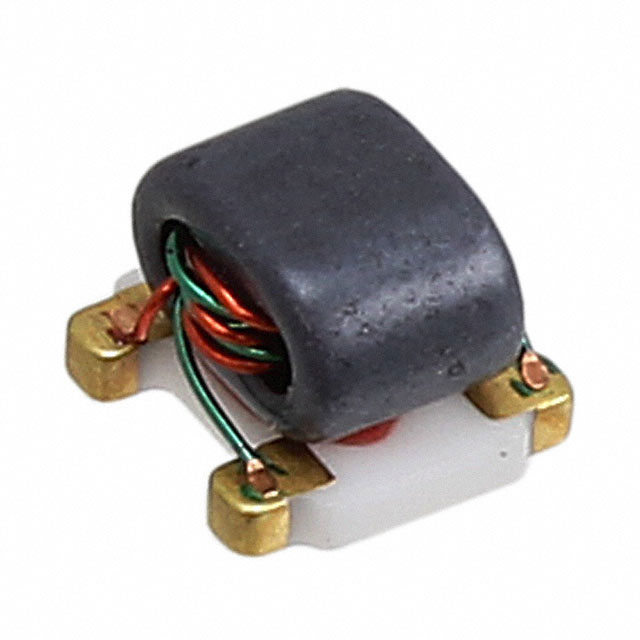

M/A-Com Technology Solutions MABACT0059

BALUN 4.5MHZ-3GHZ 1:1 6SMD FLAT

0

Panasonic Electronic Components EHF-2BG2450

BALUN 2.4GHZ-2.5GHZ 50/200 0805

1

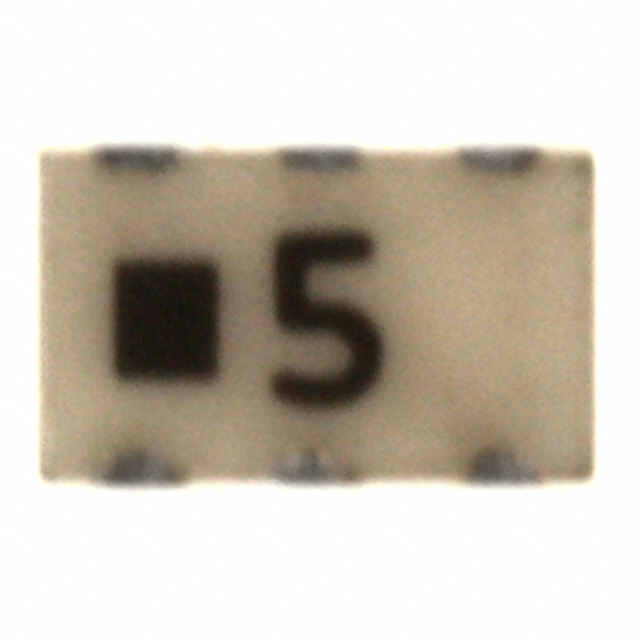

Panasonic Electronic Components EHF-FD1755T

BALUN 3.4GHZ-4GHZ 50/100 0805

0

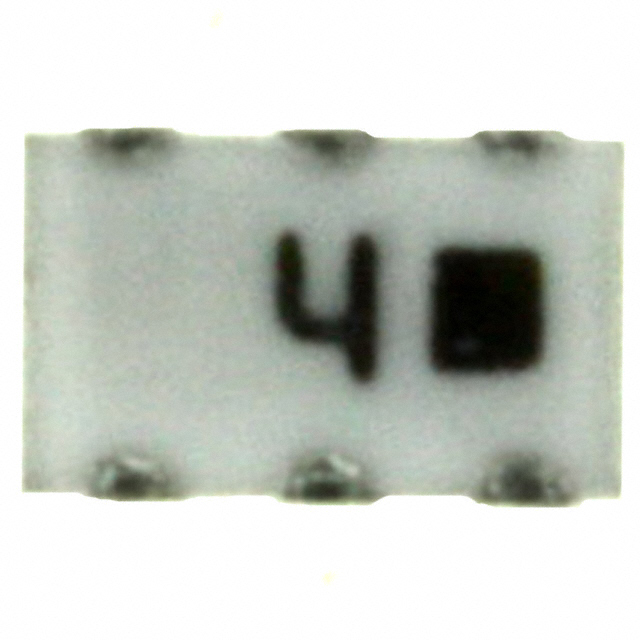

Panasonic Electronic Components EHF-FD1626

BALUN 1.6GHZ-1.8GHZ 50/200 1206

0.86

Johanson Technology Inc. 2450BL15K100E

BALUN 2.4GHZ-2.5GHZ 50/100 0805

0

TDK Corporation HHM1591D1

BALUN 350MHZ-470MHZ 50/100 0805

0

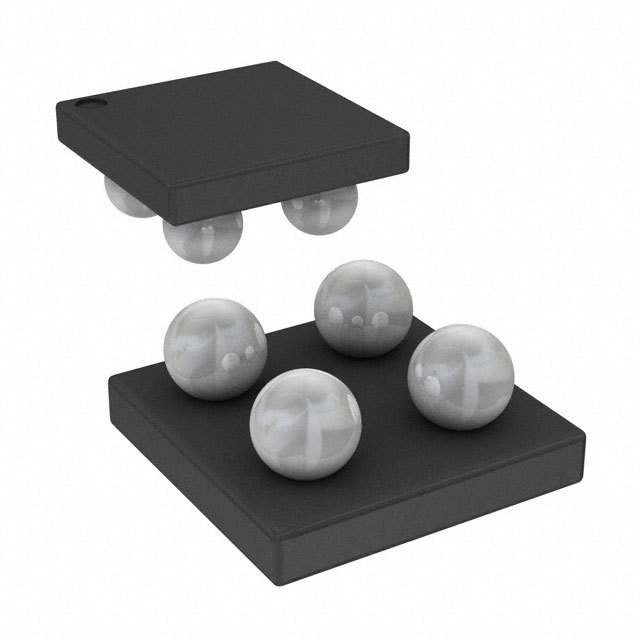

STMicroelectronics BALF-CC25-02D3

BALUN 2.4GHZ-2.5GHZ 50/50 4WFBGA

0
