IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

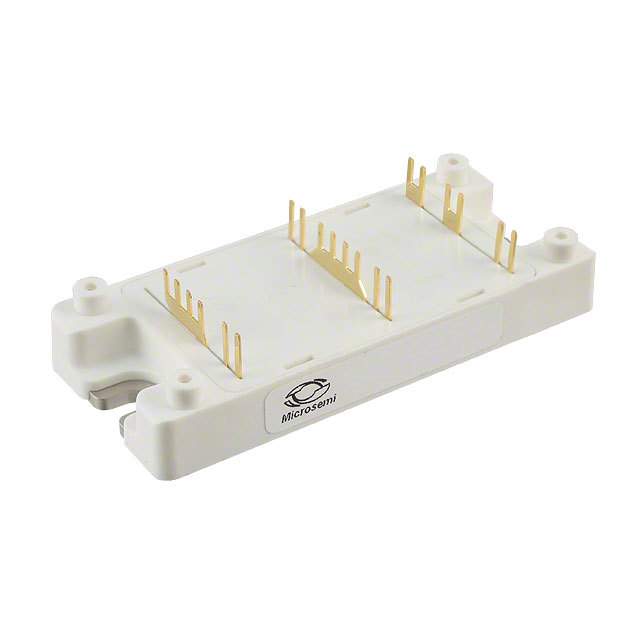

Microsemi Corporation APTGF100DU120TG

IGBT MODULE NPT DUAL 1200V SP4

0.2

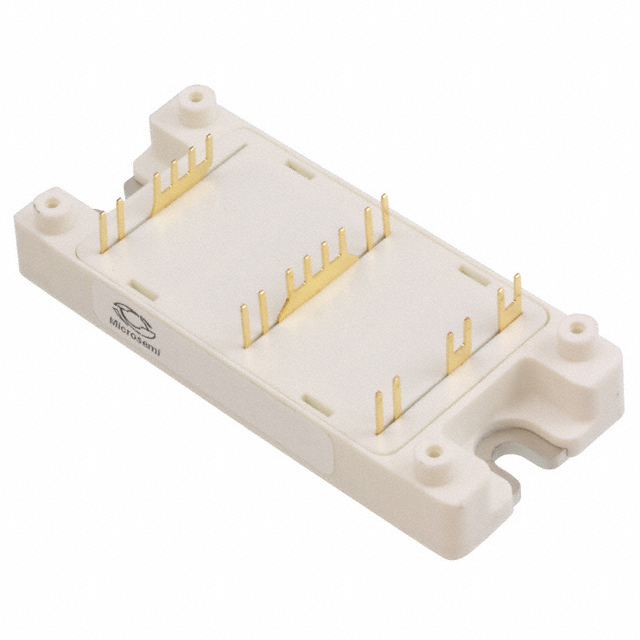

Microsemi Corporation APTGF100DA120TG

IGBT NPT BOOST CHOP 1200V SP4

0.2

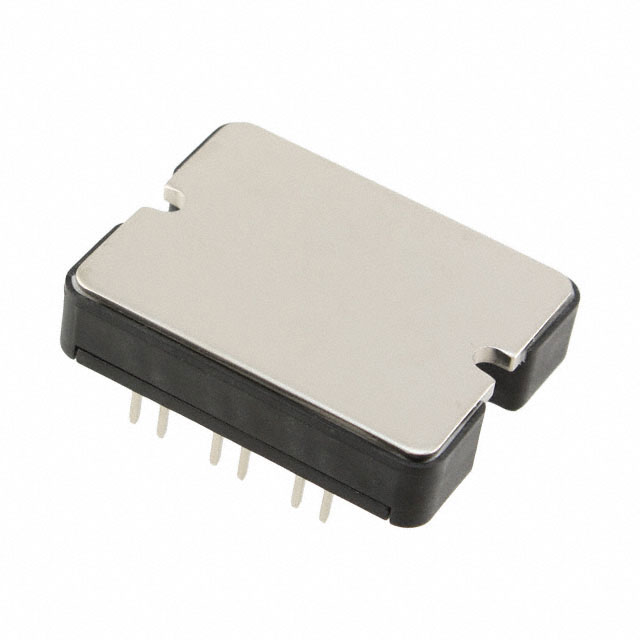

Microsemi Corporation APTGF100DA120T1G

IGBT 1200V 130A 735W SP1

0.2

Microsemi Corporation APTGF100A120TG

POWER MOD IGBT NPT PHASE LEG SP4

0.2

Microsemi Corporation APT60GF60JU3

IGBT 600V 93A 378W SOT227

0.2

Microsemi Corporation APT50GF60JU3

IGBT 600V 75A 277W SOT227

0.2

Microsemi Corporation APT30GF60JU3

IGBT 600V 58A 192W SOT227

0.2

Microsemi Corporation APT30GF60JU2

IGBT 600V 58A 192W SOT227

0.2
