IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

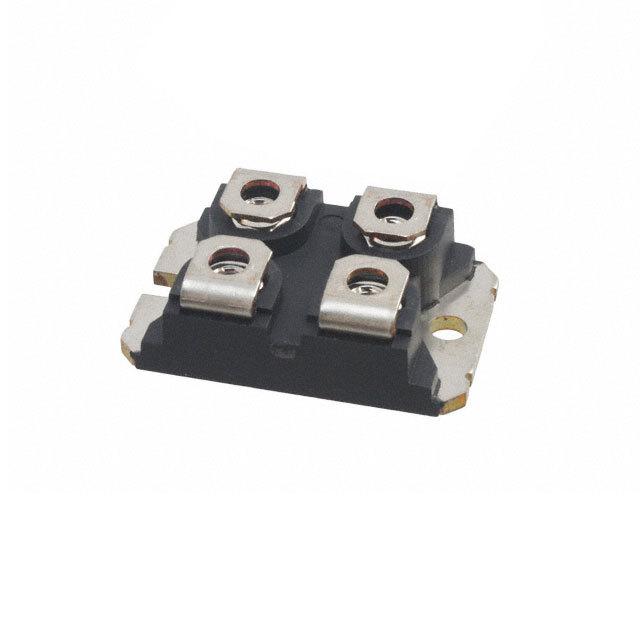

Microsemi Corporation APT75GP120JDQ3

IGBT 1200V 128A 543W SOT227

43.18

IXYS IXYN100N120C3H1

IGBT XPT 1200V 134A SOT-227B

39.34

IXYS IXXN110N65B4H1

IGBT 650V 215A 750W SOT227B

23.06

IXYS IXXN110N65C4H1

IGBT 650V 210A 750W SOT227B

23.06

Vishay Semiconductors VS-ETY020P120F

Rectifiers SW Mod - EMIPAK 2B

144.97

Vishay Semiconductors VS-20MT050XC

Schottky Diodes & Rectifiers Output & SW Modules - MTP SWITCH-e3

113.52
