IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

Infineon Technologies FF225R17ME4PBPSA1

MOD IGBT MED PWR ECONOD-3

0.2

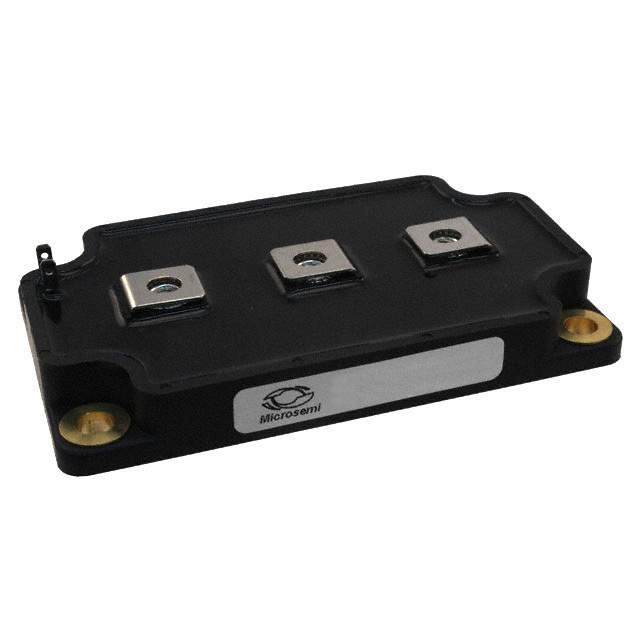

Microsemi Corporation APTGT600SK60G

IGBT TRENCH BUCK CHOP 600V SP6

0.2

Infineon Technologies FP50R12KS4CBOSA1

IGBT MODULE VCES 600V 50A

0.2

Infineon Technologies FF225R17ME4B11BOSA1

IGBT MODULE VCES 1200V 225A

0.2

Infineon Technologies FS100R12KT3BOSA1

IGBT MODULE VCES 600V 100A

0.2

Powerex, Inc. CM75TU-12F

IGBT MOD 6PAC 600V 75A F SER

0.2

Infineon Technologies F3L200R07PE4BOSA1

IGBT MODULE VCES 650V 200A

0.2

Vishay / Semiconductor - Diodes Division VS-GT50TP60N

IGBT 600V 85A 208W INT-A-PAK

0.2
