Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

Samtec, Inc. BTMM-125-01-T-S

.020 SQ. RA POST ASSEMBLY

2.55

Samtec, Inc. BTMM-115-01-T-D

.020 SQ. RA POST ASSEMBLY

2.62

Samtec, Inc. BTMM-121-01-T-S-019

.020 SQ. RA POST ASSEMBLY

2.43

Samtec, Inc. BTMM-113-01-T-D

.020 SQ. RA POST ASSEMBLY

2.27

Samtec, Inc. BTMM-122-01-T-S

.020 SQ. RA POST ASSEMBLY

2.25

TE Connectivity AMP Connectors 1-826853-1

SHUNT CONN.ASSY 1P

2.25

Samtec, Inc. MNT-105-BK-H

CONN SHUNT 10POS

2.2

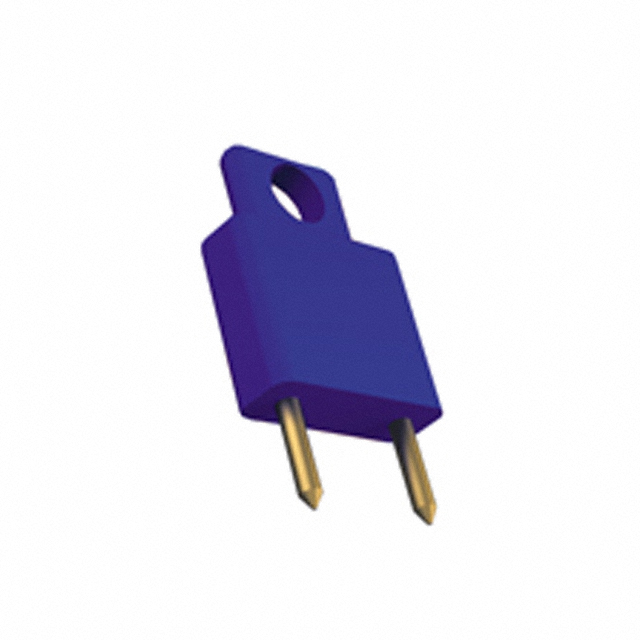

Keystone Electronics 1463L

PLUG SHORTING INSULATED BLUE

2.17
