Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

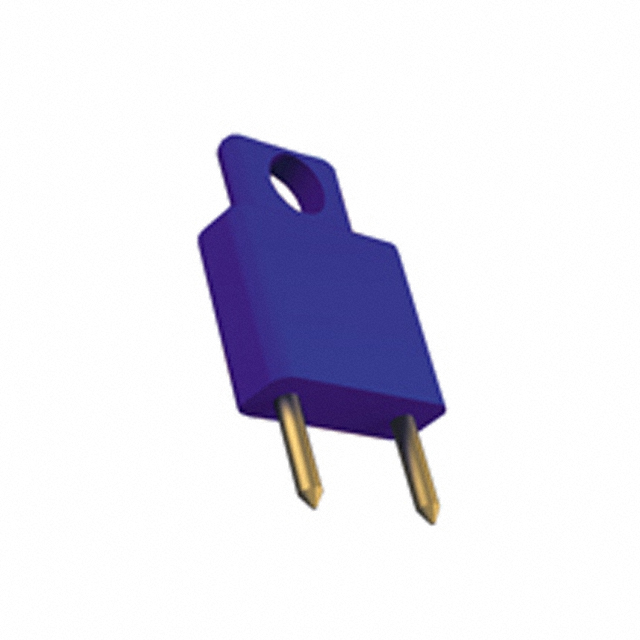

Keystone Electronics 1462L

PLUG SHORTING INSULATED BLUE

2.17

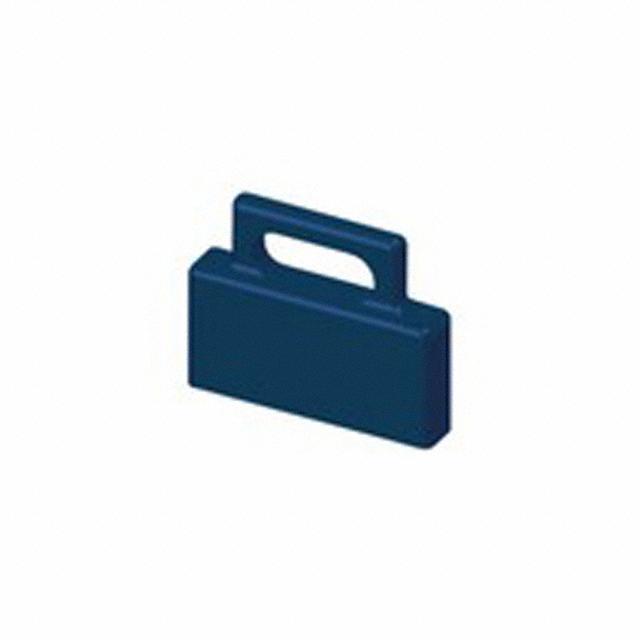

Keystone Electronics 1400L

JACK SHORTING INSULATED BLUE

2.17

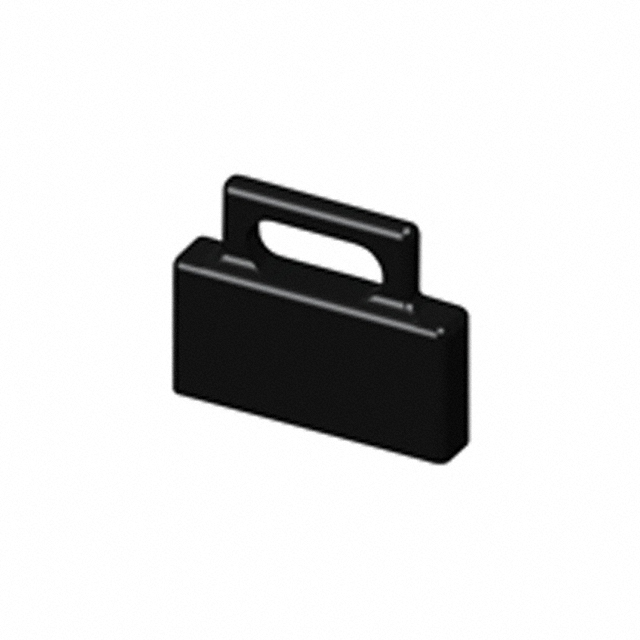

Keystone Electronics 1400B

JACK SHORTING INSULATED BLACK

2.17

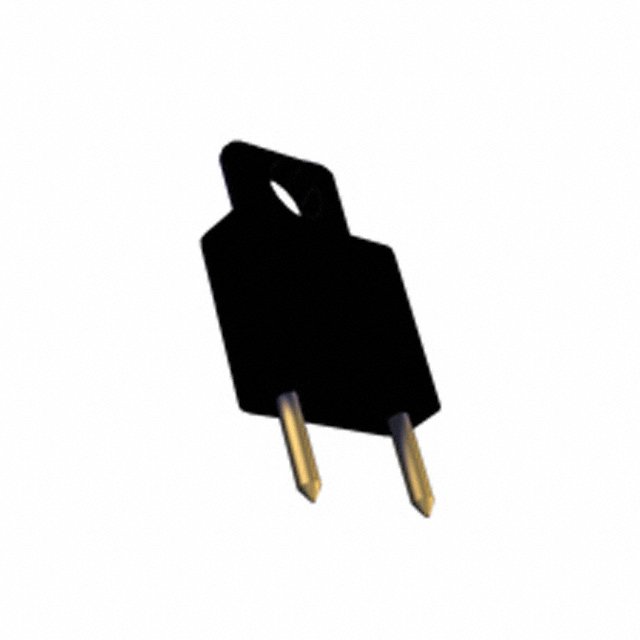

Keystone Electronics 1463B

PLUG SHORTING INSULATED BLACK

2.17

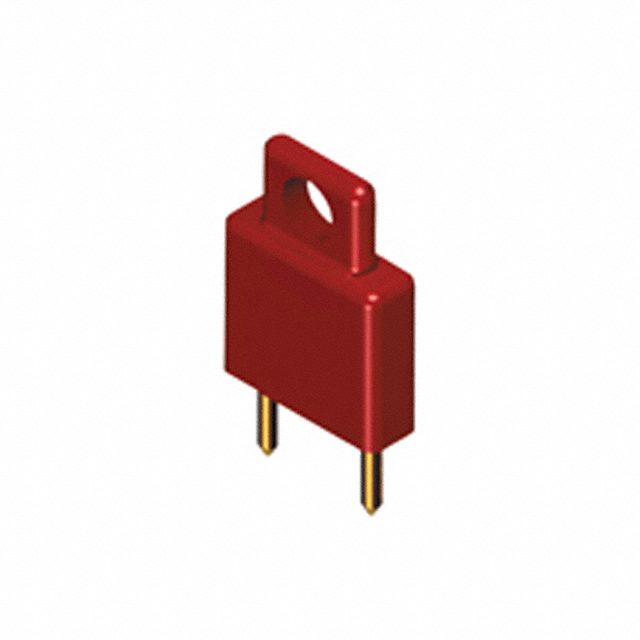

Keystone Electronics 1462R

PLUG SHORTING INSULATED RED

2.17

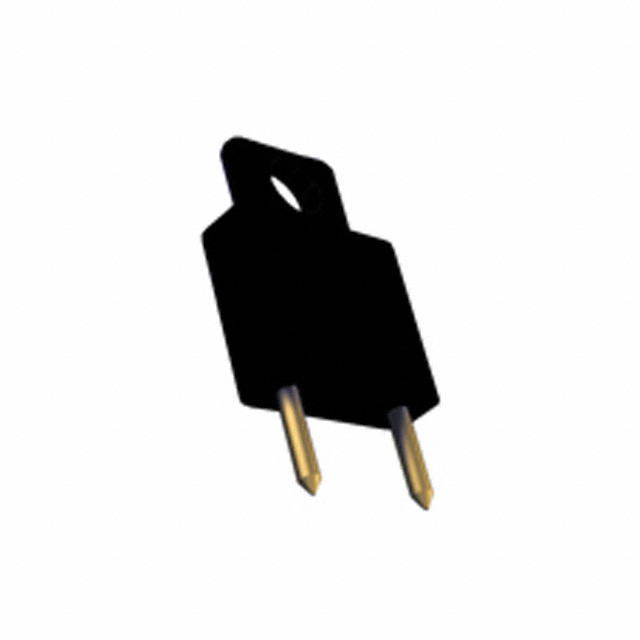

Keystone Electronics 1462B

PLUG SHORTING INSULATED BLACK

2.17

Parallax, Inc. 452-00009

JUMPER, 2-PIN - LF

2.13

Amphenol ICC (FCI) 69144-220LF

CONN SHUNT

2.16
