Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

Samtec, Inc. BTMM-112-01-T-D

.020 SQ. RA POST ASSEMBLY

2.1

Samtec, Inc. BTMM-120-01-T-S

.020 SQ. RA POST ASSEMBLY

2.04

Samtec, Inc. BTMM-110-01-T-D-010

.020 SQ. RA POST ASSEMBLY

2.03

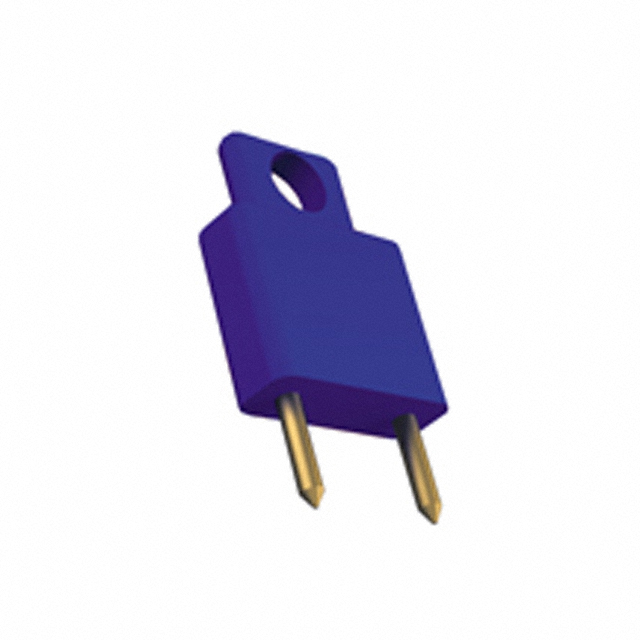

Keystone Electronics 1461L

PLUG SHORTING INSULATED BLUE

2

Samtec, Inc. BTMM-118-01-T-S

.020 SQ. RA POST ASSEMBLY

1.84

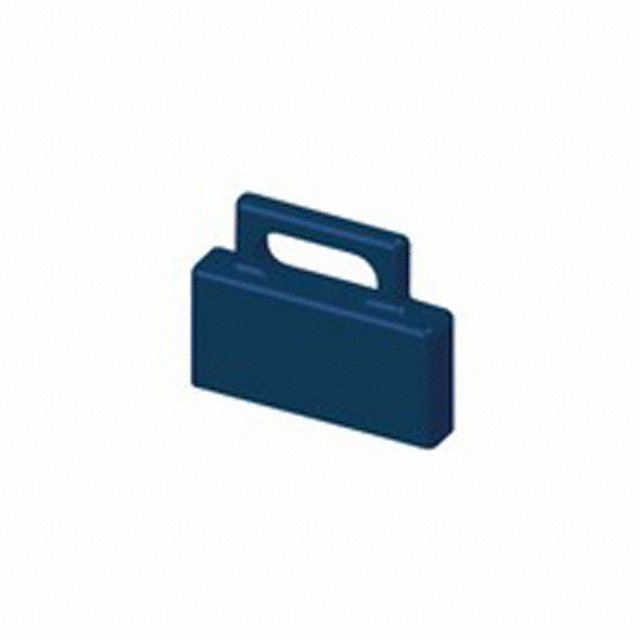

Keystone Electronics 1487L

JACK SHORTING INSULATED BLUE

2

Samtec, Inc. BTMM-110-01-T-D

.020 SQ. RA POST ASSEMBLY

1.74

Samtec, Inc. BTMM-109-01-T-D

.020 SQ. RA POST ASSEMBLY

1.57
