Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

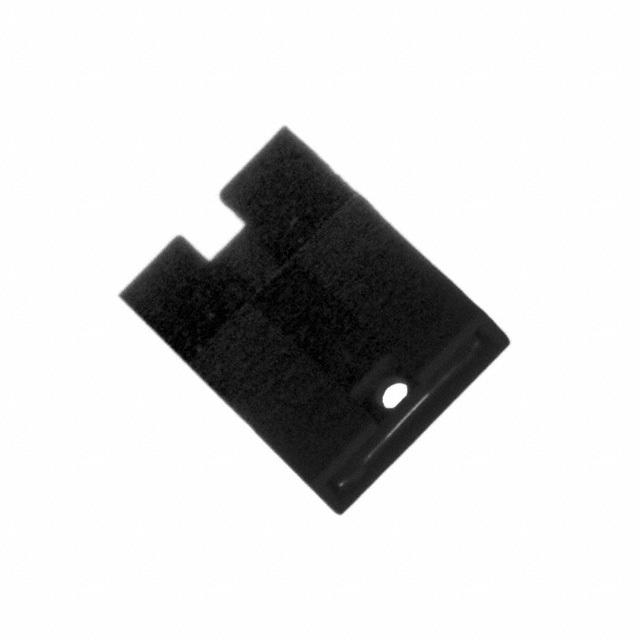

Harwin Inc. D3086-99

1MM INSULATED SHORTING PLUG

1.02

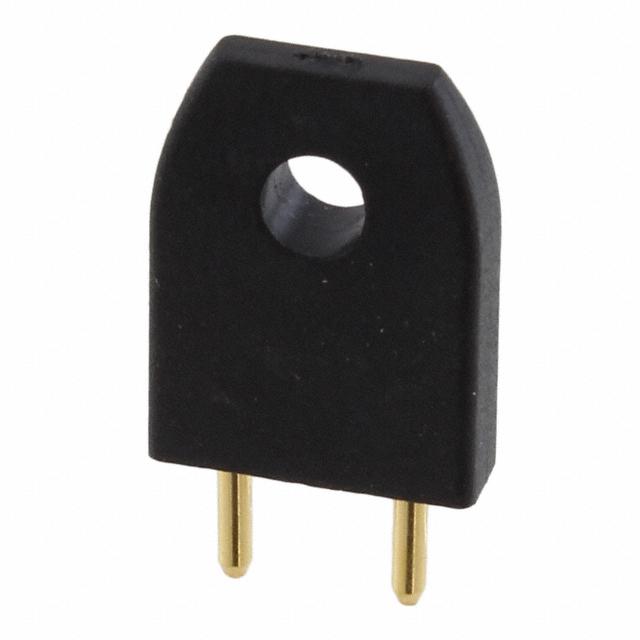

Harwin Inc. D3086-98

1MM INSULATED SHORTING PLUG

1.02

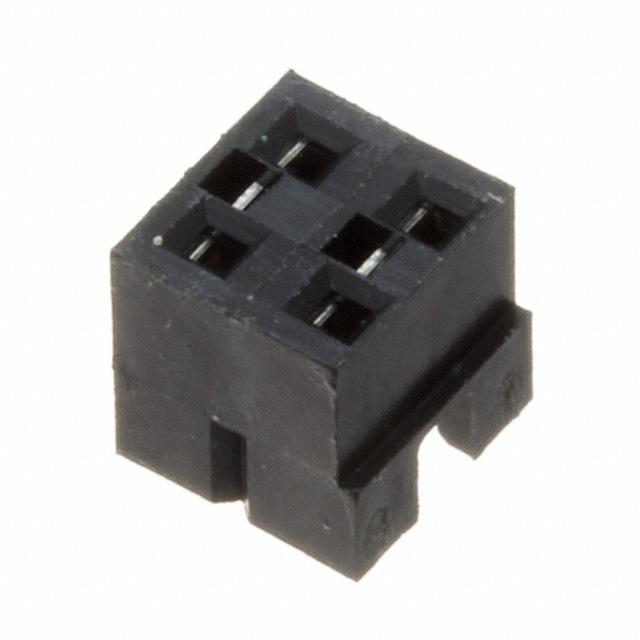

Samtec, Inc. MNT-102-BK-G

CONN SHUNT 4POS

0.76

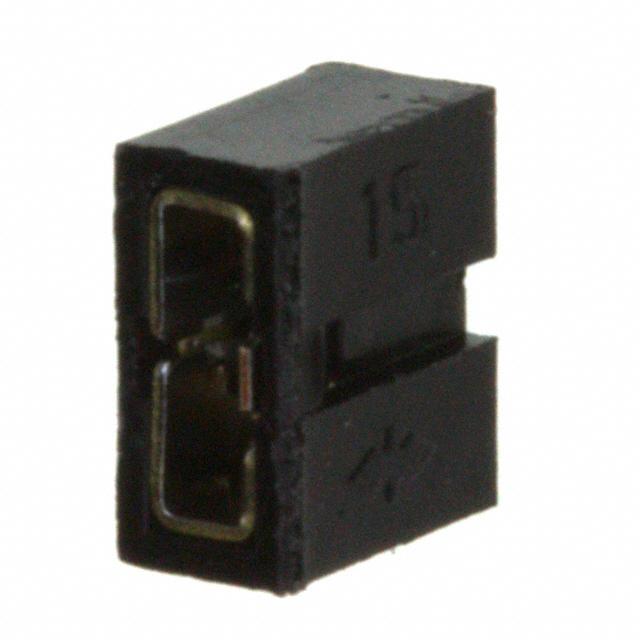

Amphenol ICC (FCI) 86730-101LF

CONN SHUNT 2MM 2POS GOLD BLACK

0.76

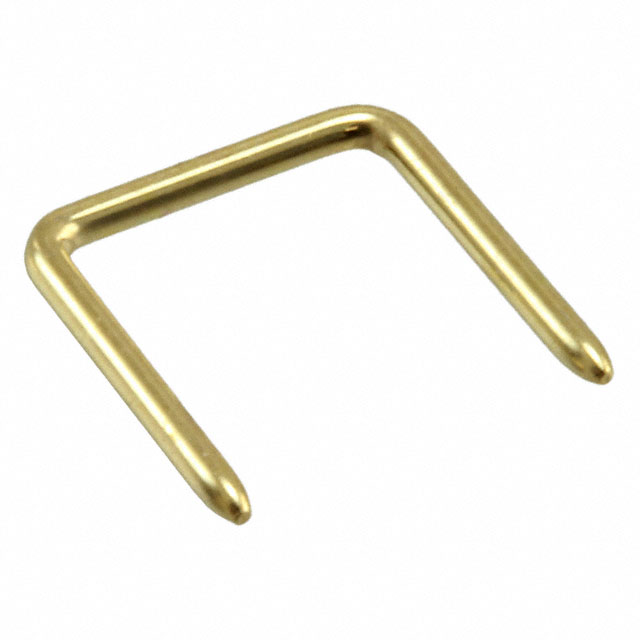

Mill-Max Manufacturing Corp. 999-11-113-10-000000

JUMPER NON-INSULATED MALE .300"

0.64

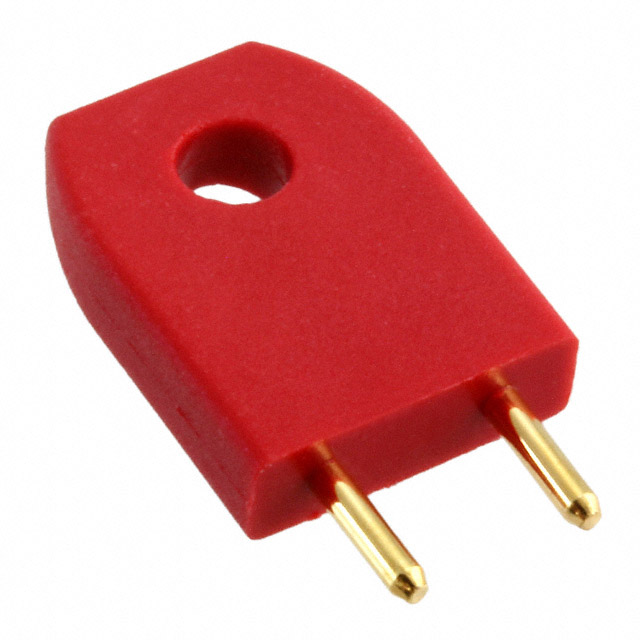

TE Connectivity AMP Connectors 531230-4

SHUNT STANDARD 2POS .200 TIN

0.64

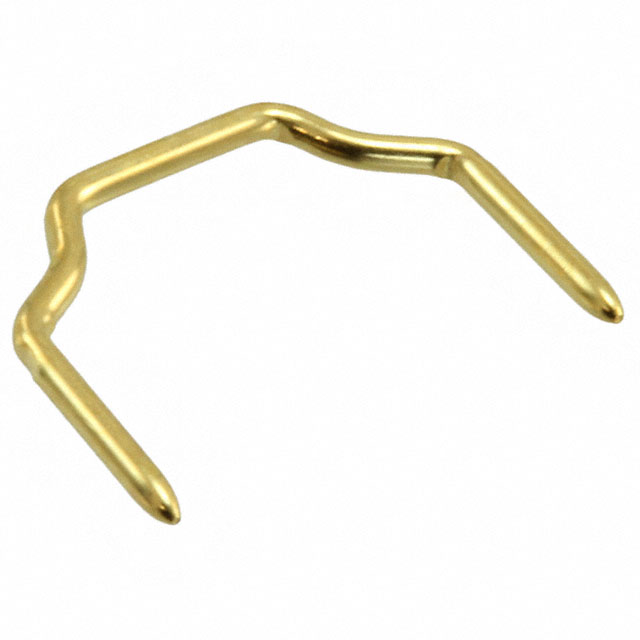

Mill-Max Manufacturing Corp. 999-11-112-10-000000

JUMPER NON-INSULATED MALE .200"

0.63

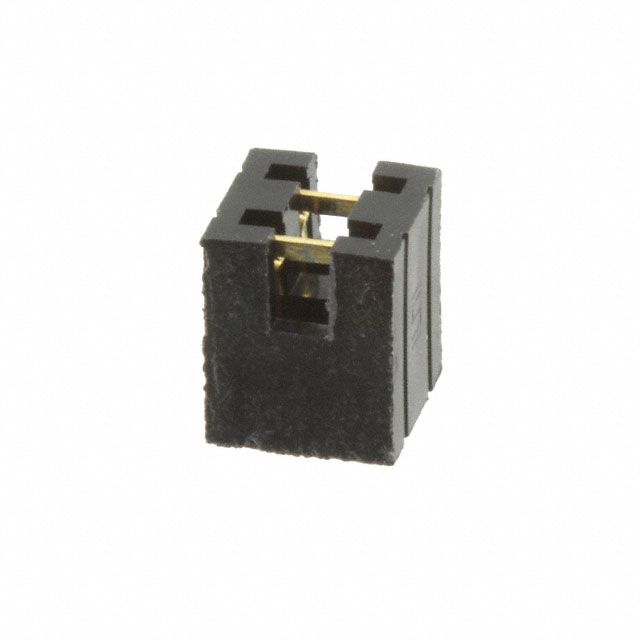

Amphenol ICC (FCI) 69145-204LF

CONN SHUNT .100" 4POS GOLD

0.57
