Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

Molex 0015291024

CONN SHUNT 2POS .100 GOLD

0.56

TE Connectivity AMP Connectors 531230-2

SHUNT .200 C/L LP 2 POS 15AU

0.54

TE Connectivity AMP Connectors 390088-1

CONN SHUNT DUAL BEAM 30AU PCB

0.51

Keystone Electronics 1430-5

PIN SHORTING .500"DIA

0.5

Samtec, Inc. SNM-100-BK-G

.050 MICRO STRIPS

0.49

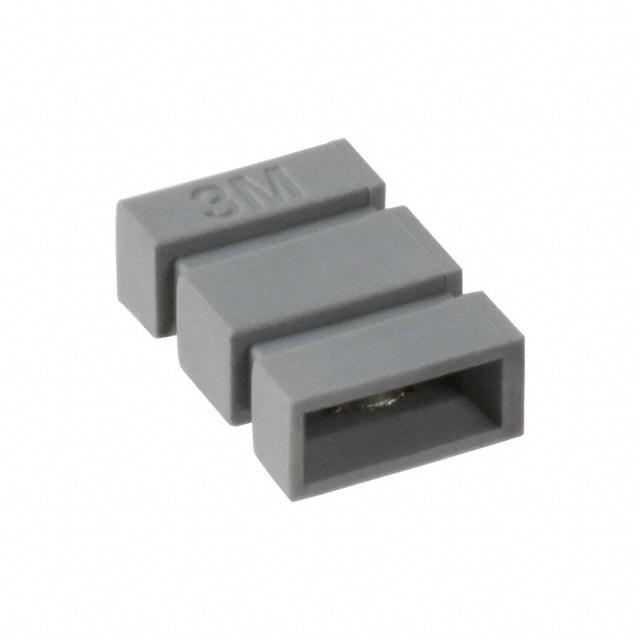

3M 929957-08

SHORTING JUMPERS GOLD PLATED GRY

0.49

Amphenol ICC (FCI) 65474-001LF

CONN MINI-JUMP SHUNT 2POS ..100"

0.48

Amphenol ICC (FCI) 65474-001

MINI JUMP 2POS .100"

0.48
