Shunts, Jumpers

Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).

---

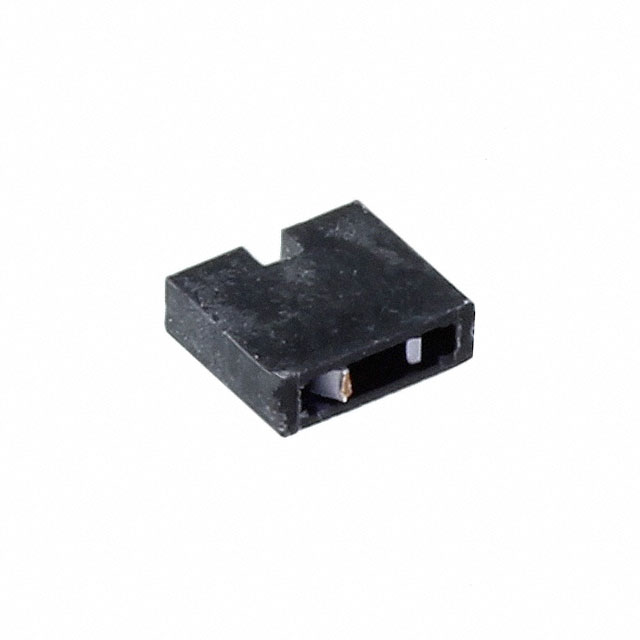

Amphenol ICC (FCI) 65474-010LF

CONN SHUNT 2POS .100 GOLD

0.42

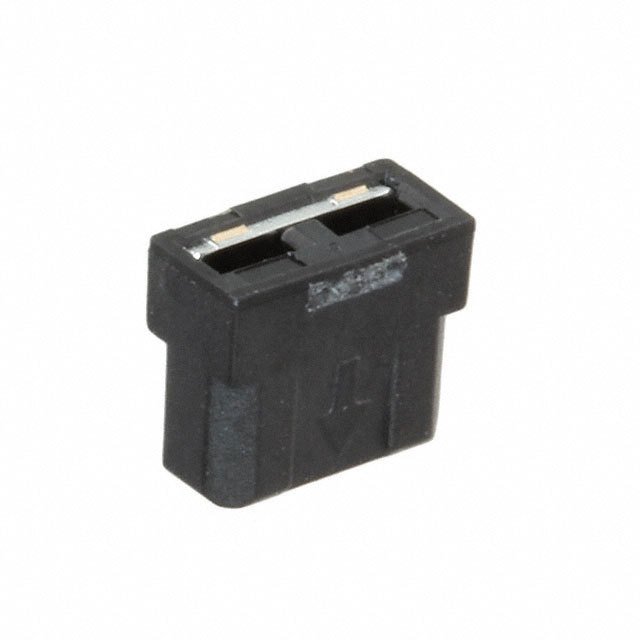

Amphenol ICC (FCI) 71363-102LF

CONN SHUNT 2POS .100 HIBOX 15AU

0.42

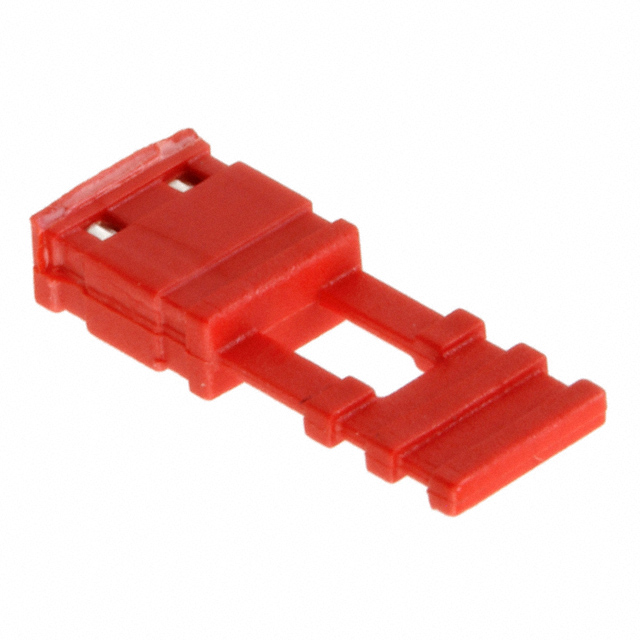

Harwin Inc. M7681-05

14MM JUMPER SKT W/HNDL RED

0.41

Samtec, Inc. SNM-100-BK-T

CONN MICRO SHUNT

0.37

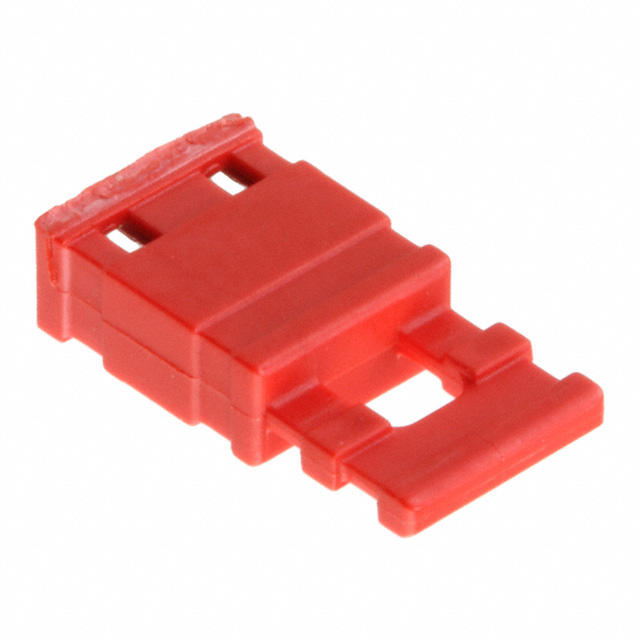

Harwin Inc. M7685-05

CLOSED TOP JUMPER SOCKET

0.36

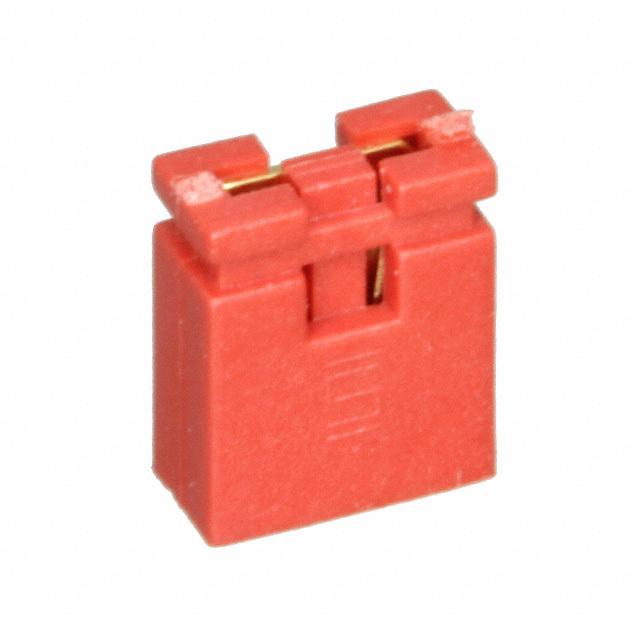

Samtec, Inc. SNT-100-RD-G

CONN SHUNT 2POS

0.36

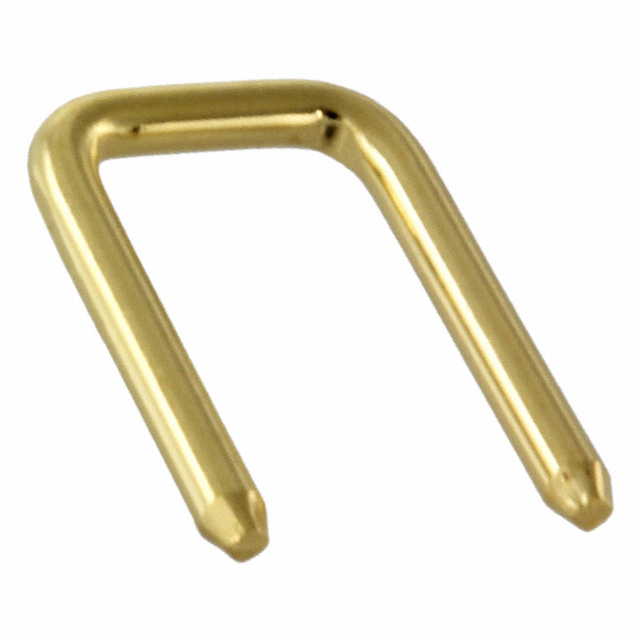

Harwin Inc. D3080-05

1MM UNINSULATED SHORTING PLUG

0.36

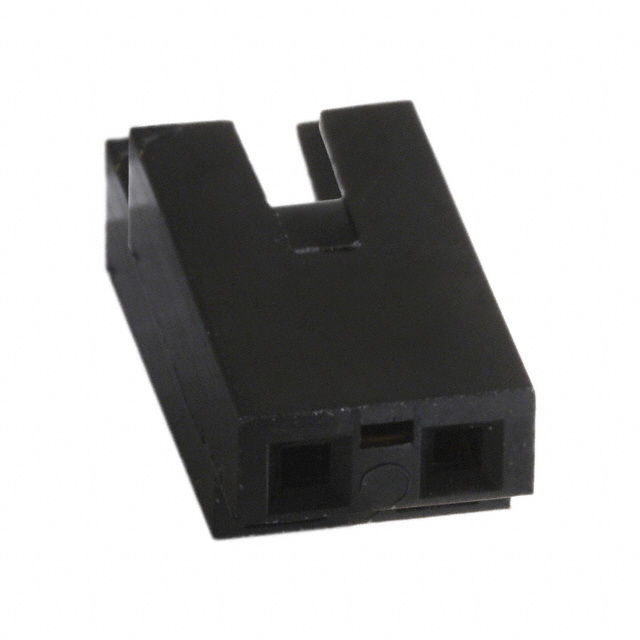

Omron Electronics Inc-EMC Div XJ8A-0241

CONN SOCKET JUMPER 2POS

0.36
