Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

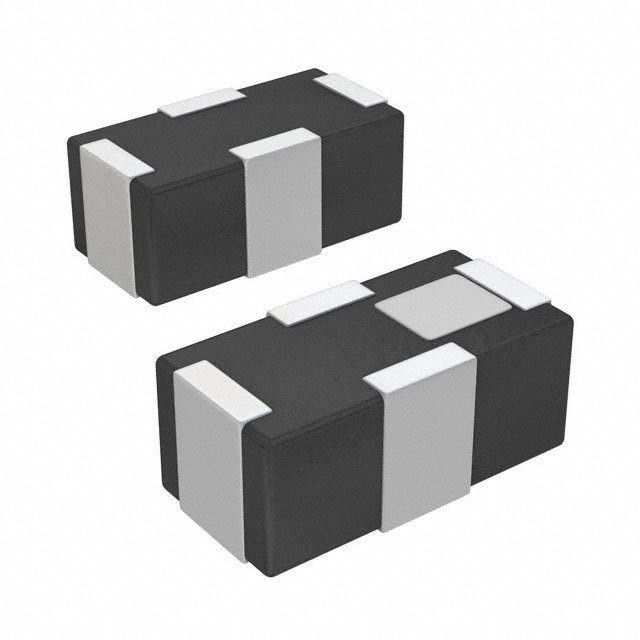

TDK Corporation HHM1903A1

BALUN 2.4GHZ-2.5GHZ 50/100 0402

0

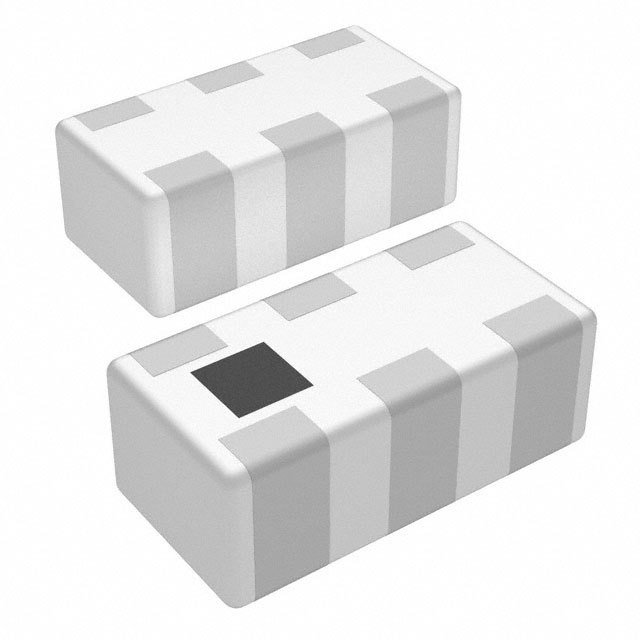

TDK Corporation HHM17168B1

BALUN 3.4GHZ-3.8GHZ 50/50 0603

0

TDK Corporation HHM17166A1

BALUN 1.9GHZ-2.3GHZ 50/50 0603

0

TDK Corporation HHM17165A1

BALUN 2.4GHZ-2.8GHZ 50/50 0603

0

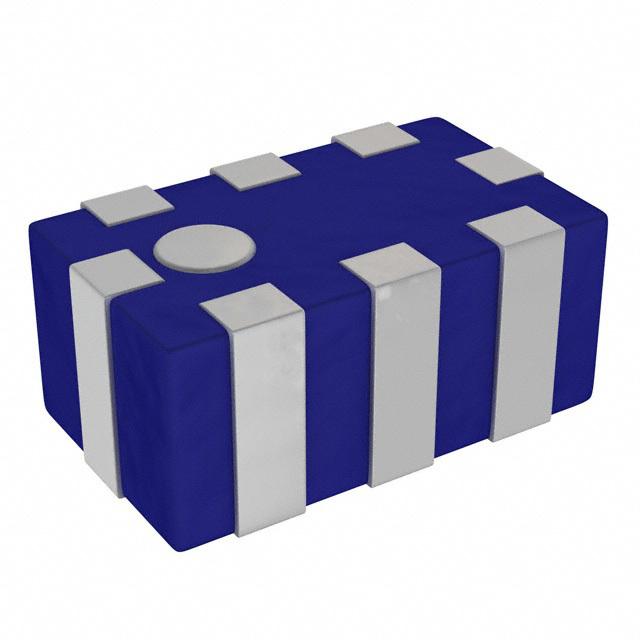

TAIYO YUDEN FI212C245033-T

BALUN 2.4GHZ-2.5GHZ 0805

0

TDK Corporation HHM1523B3

BALUN 824MHZ-894MHZ 50/100 0805

0

PulseR HFB075100A

BALUN ADAPT 75 TO 100 OHM B PBC

850.44

Pulse Electronics Network CX2044LNL

BALUN 5MHZ-500MHZ 50/50 5SMD

2.96
