Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

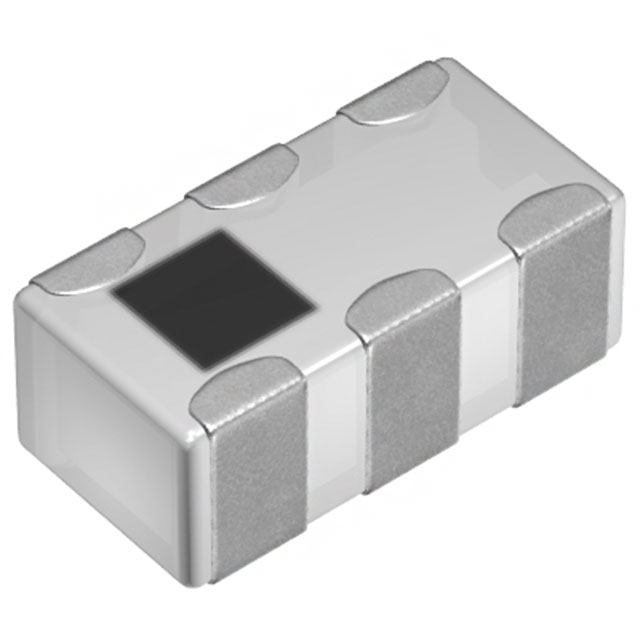

TDK Corporation HHM1589E1

BALUN 350MHZ-470MHZ 50/200 0805

0.65

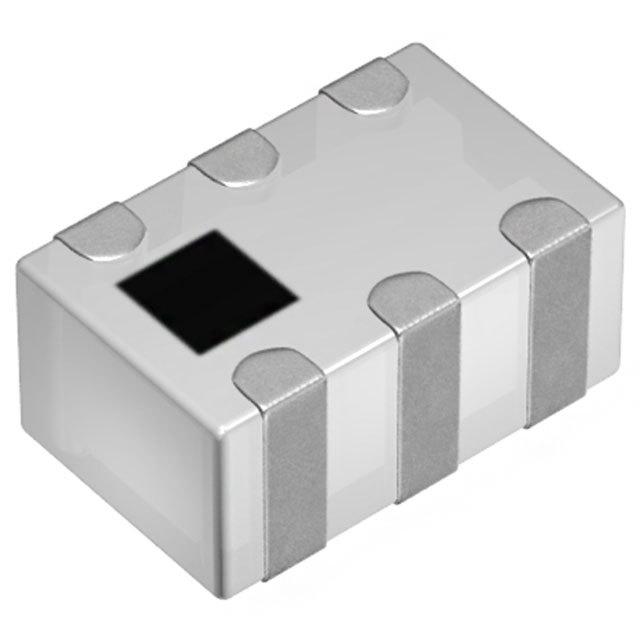

TDK Corporation HHM1710J1

MULTILAYER BALUN FOR 2300 - 2700

0

STMicroelectronics BALF-NRF01J5

BALUN 2.4GHZ-2.54GHZ 5XFBGA

0.52

TDK Corporation HHM15107A2

MULTILAYER BALUN FOR 2300 - 2700

0

TDK Corporation HHM1506

BALUN DUAL 50/100 0805

0

TDK Corporation HHM1534

BALUN DUAL 50/200 0805

0.41

TDK Corporation HHM17147A1

MULTILYER BALUN FOR 673-2700MHZ

0

TDK Corporation HHM1775D1

BALUN 3.1GHZ-4.9GHZ 50/100 0805

0
