IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

IXYS MWI75-06A7T

MOD IGBT SIXPACK RBSOA 600V E2

82.32

IXYS MIXA80WB1200TEH

IGBT MODULE 1200V 84A

89.28

Vishay / Semiconductor - Diodes Division VS-40MT120UHTAPBF

IGBT 1200V 80A 463W MTP

89.03

Infineon Technologies FP15R12KS4CBOSA1

IGBT MODULE VCES 600V 22A

88.61

Infineon Technologies F450R12KS4BOSA1

IGBT MODULE VCES 650V 50A

94.34

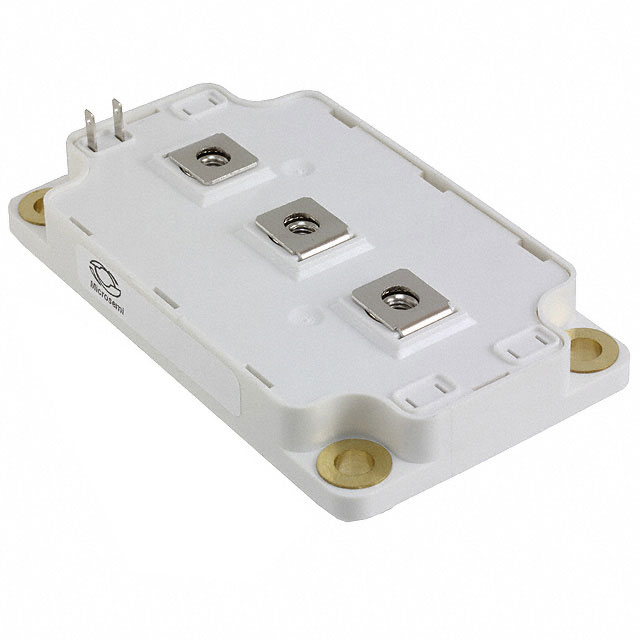

Microsemi Corporation APTGT150DA120G

IGBT 1200V 220A 690W SP6

93.61

IXYS MIXA100W1200TEH

IGBT MODULE 1200V 108A HEX

93.46

IXYS MWI100-06A8

MOD IGBT SIXPACK RBSOA 600V E3

100.24
