IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

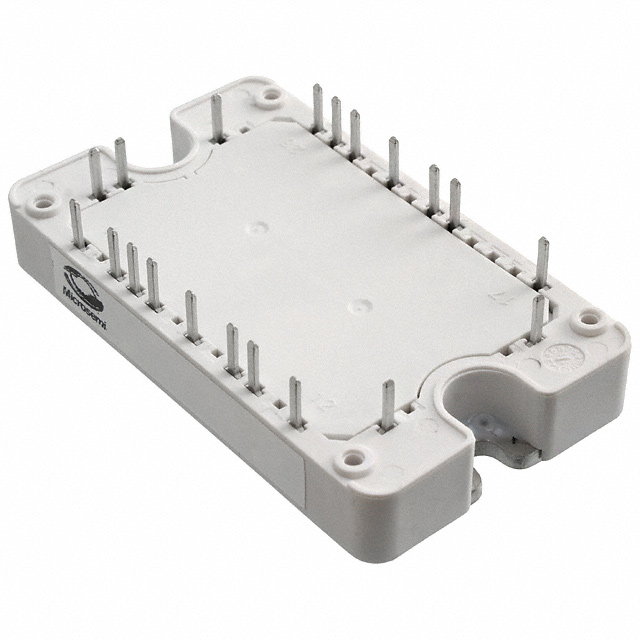

Microsemi Corporation APTCV60HM45RT3G

POWER MOD IGBT3 FULL BRIDGE SP3

63.53

Infineon Technologies FS35R12KT3BOSA1

MOD IGBT LOW PWR ECONO2-6

63.4

Microsemi Corporation APTGT200A60T3AG

IGBT PHASE TRENCH FIELD STOP SP3

67.93

Microsemi Corporation APTGT150A60T3AG

MOD IGBT 600V 225A SP3

67.89

Infineon Technologies FP25R12KT3BOSA1

IGBT MODULE VCES 1200V 40A

67.82

Infineon Technologies FS75R07U1E4BPSA1

MOD IGBT LOW PWR SMART1-1

70.31

IXYS MWI25-12A7T

MOD IGBT SIXPACK RBSOA 1200V E2

71

IXYS MUBW25-12A7

CONVERTER/BRAKE/INVERTER 2.9VCE

70.92
