IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

Microsemi Corporation APTGF400U120D4G

IGBT 1200V 510A 2500W D4

0.2

Microsemi Corporation APTGF360U60D4G

IGBT 600V 450A 1560W D4

0.2

Microsemi Corporation APTGF350SK60G

IGBT 600V 430A 1562W SP6

0.2

Microsemi Corporation APTGF350DU60G

IGBT MODULE NPT DUAL SP6

0.2

Microsemi Corporation APTGF350DA60G

IGBT 600V 430A 1562W SP6

0.2

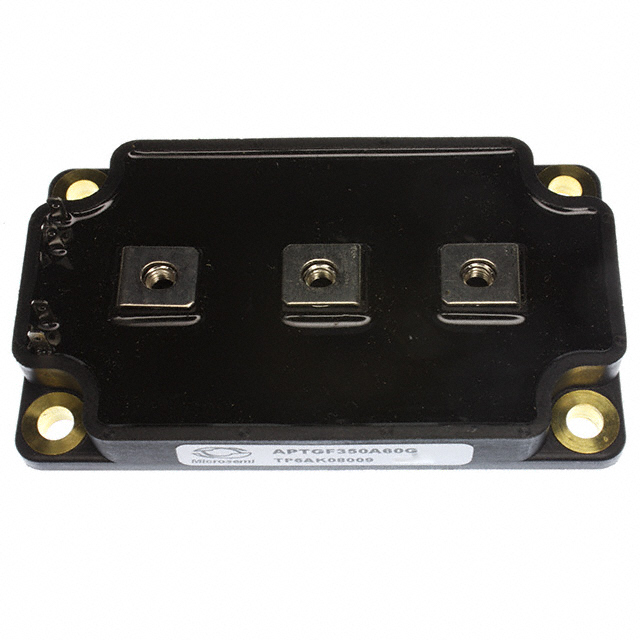

Microsemi Corporation APTGF350A60G

POWER MODULE IGBT 600V 350A SP6

0.2

Microsemi Corporation APTGF330SK60D3G

IGBT 600V 460A 1400W D3

0.2

Microsemi Corporation APTGF330DA60D3G

IGBT 600V 460A 1400W D3

0.2
