IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

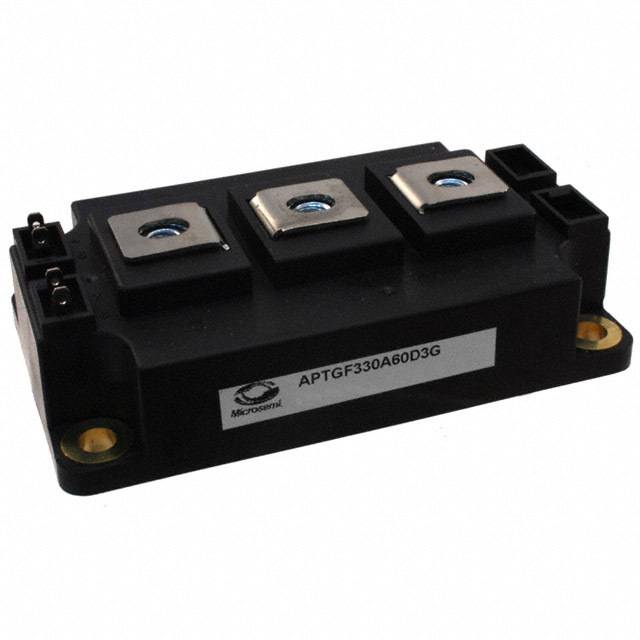

Microsemi Corporation APTGF330A60D3G

IGBT NPT PHASE 600V 520A D3

0.2

Microsemi Corporation APTGF30A60T1G

IGBT MODULE NPT PHASE LEG SP1

0.2

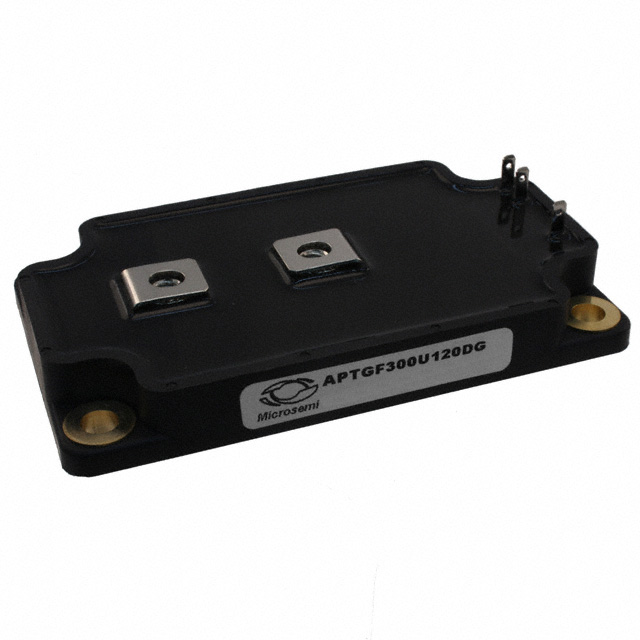

Microsemi Corporation APTGF300U120DG

IGBT 1200V 400A 1780W SP6

0.2

Microsemi Corporation APTGF300SK120G

IGBT 1200V 400A 1780W SP6

0.2

Microsemi Corporation APTGF300SK120D3G

IGBT 1200V 420A 2100W D3

0.2

Microsemi Corporation APTGF300DU120G

IGBT MODULE NPT DUAL SP6

0.2

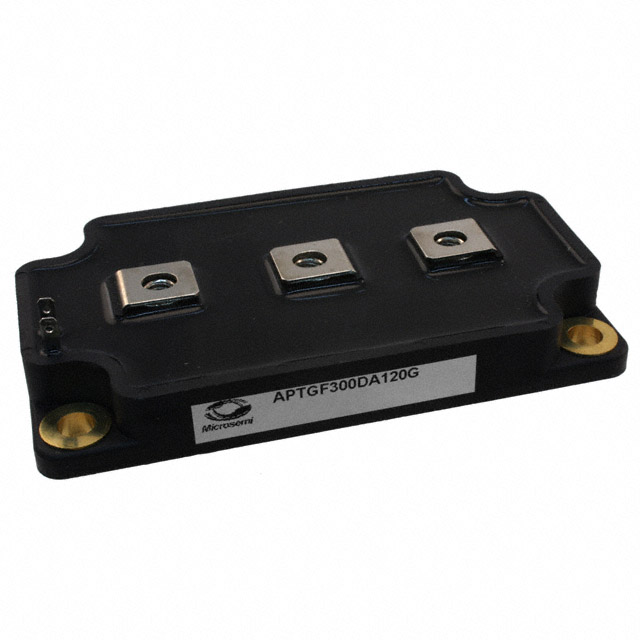

Microsemi Corporation APTGF300DA120G

IGBT NPT BOOST CHOP 1200V 400A S

0.2

Microsemi Corporation APTGF300DA120D3G

IGBT 1200V 420A 2100W D3

0.2
