IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

Microsemi Corporation APTGF250SK60D3G

IGBT 600V 400A 1250W D3

0.2

Microsemi Corporation APTGF250DA60D3G

IGBT 600V 400A 1250W D3

0.2

Microsemi Corporation APTGF250A60D3G

IGBT MODULE NPT PHASE LEG D3

0.2

Microsemi Corporation APTGF200U120DG

IGBT 1200V 275A 1136W SP6

0.2

Microsemi Corporation APTGF200SK120D3G

IGBT 1200V 300A 1400W D3

0.2

Microsemi Corporation APTGF200DA120D3G

IGBT 1200V 300A 1400W D3

0.2

Microsemi Corporation APTGF200A120D3G

IGBT MODULE NPT PHASE LEG D3

0.2

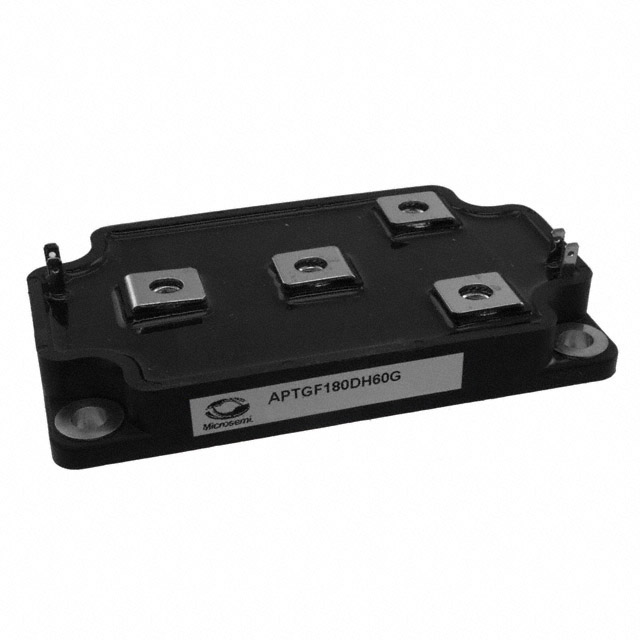

Microsemi Corporation APTGF180DH60G

POWER MODULE IGBT 600V 180A SP6
