IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

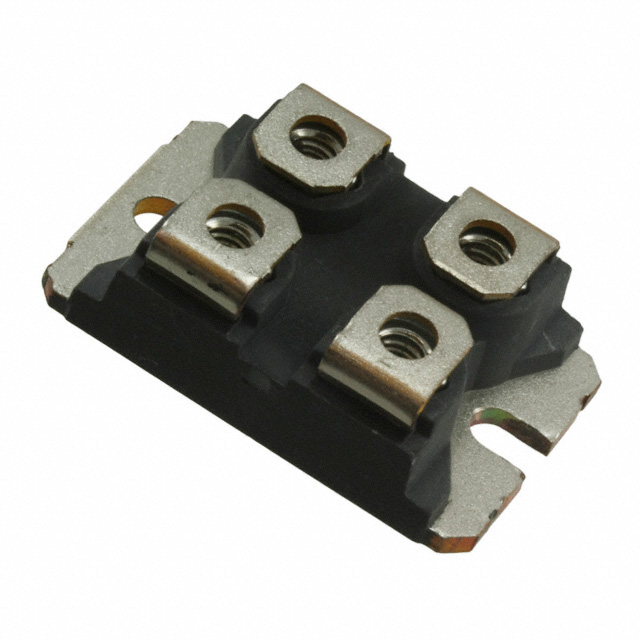

IXYS IXEN60N120D1

IGBT NPT3 1200V 100A SOT-227B

0.2

IXYS IXEN60N120

IGBT NPT3 1200V 100A SOT-227B

0.2

IXYS MII400-12E4

IGBT 1.2KV 420A MODULE

0.2

Microsemi Corporation APT75GN120J

IGBT 1200V 124A 379W SOT227

0.2

Microsemi Corporation APT75GN120JDQ3G

IGBT 1200V 124A 379W SOT227

0.2

Microsemi Corporation APT60GT60JR

IGBT 600V 93A 378W SOT227

0.2

Microsemi Corporation APT50GT120JRDQ2

IGBT 1200V 72A 379W SOT227

0.2

Microsemi Corporation APT50GP60J

IGBT 600V 100A 329W SOT227

0.2
