IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

Microsemi Corporation APT40GP60JDQ2

IGBT 600V 86A 284W SOT227

0.2

Microsemi Corporation APT40GF120JRDQ2

IGBT 1200V 77A 347W SOT227

0.2

Microsemi Corporation APT35GP120JDQ2

IGBT 1200V 64A 284W SOT227

0.2

Microsemi Corporation APT200GN60JG

IGBT 600V 283A 682W SOT227

0.2

Microsemi Corporation APT200GN60JDQ4G

IGBT 600V 283A 682W SOT227

0.2

STMicroelectronics STGE50NB60HD

IGBT N-CHAN 600V 50A ISOTOP

0.2

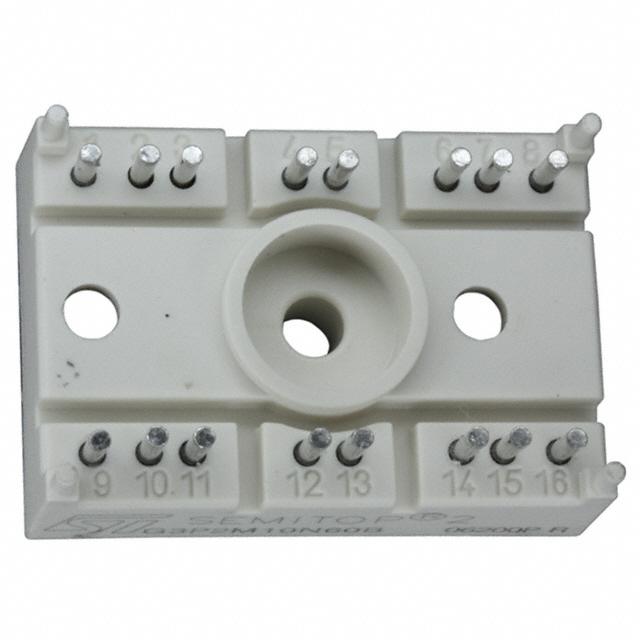

STMicroelectronics STG3P2M10N60B

IGBT N-CHAN 600V 19A SEMITOP2

0.2

ON Semiconductor FMG2G400US60

IGBT MOLDING 600V 400A 7PM-IA

0.2
