IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

Littelfuse Inc. MG0675S-BN4MM

IGBT 600V 100A 250W PKG S

64.65

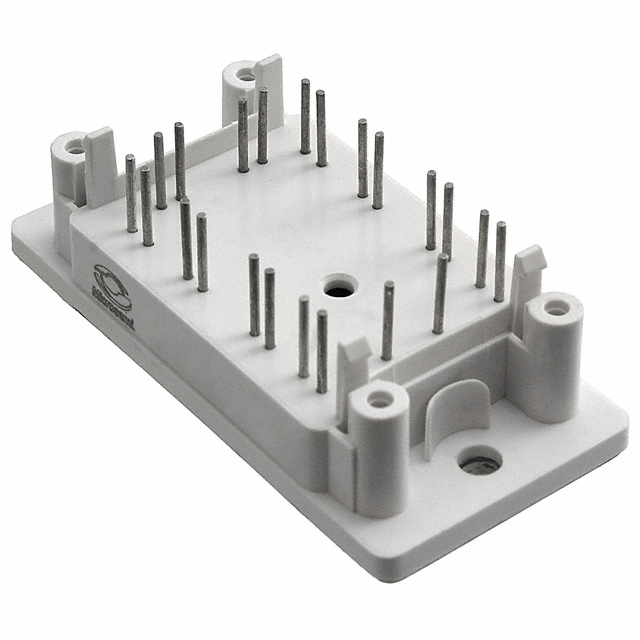

Microsemi Corporation APTGFQ25H120T2G

IGBT 1200V 40A 227W MODULE

59.44

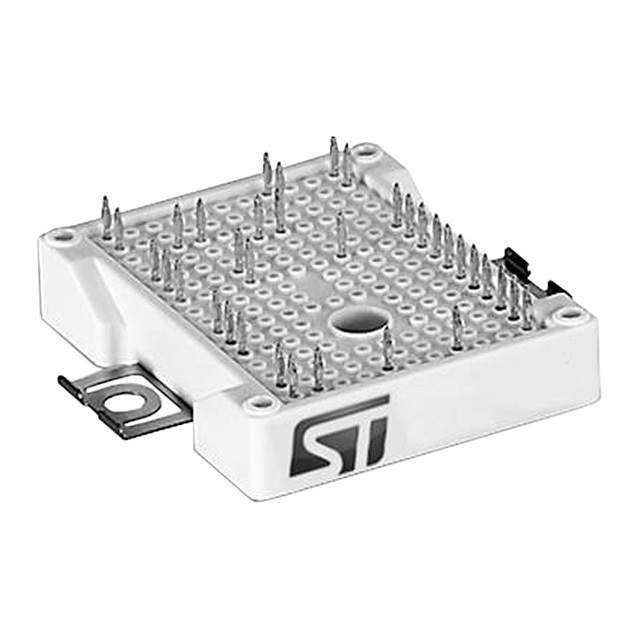

STMicroelectronics A2P75S12M3-F

IGBT TRENCH 1200V 75A ACEPACK2

64.45

STMicroelectronics A2P75S12M3

IGBT TRENCH 1200V 75A ACEPACK2

63.58

STMicroelectronics A2C25S12M3

IGBT TRENCH 1200V 25A ACEPACK2

53.19

Infineon Technologies FS30R06W1E3B11BOMA1

MOD IGBT LOW PWR EASY1B-2

26.85

IXYS MIXA150R1200VA

IGBT MODULE 1200V 150A HEX

26.36

IXYS MIXA150Q1200VA

IGBT MODULE 1200V 150A HEX

26.36
