IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

IXYS MWI15-12A6K

MOD IGBT RBSOA SIXPACK E1

35.69

IXYS MID75-12A3

MOD IGBT RBSOA 1200V 900A Y3-DCB

41.16

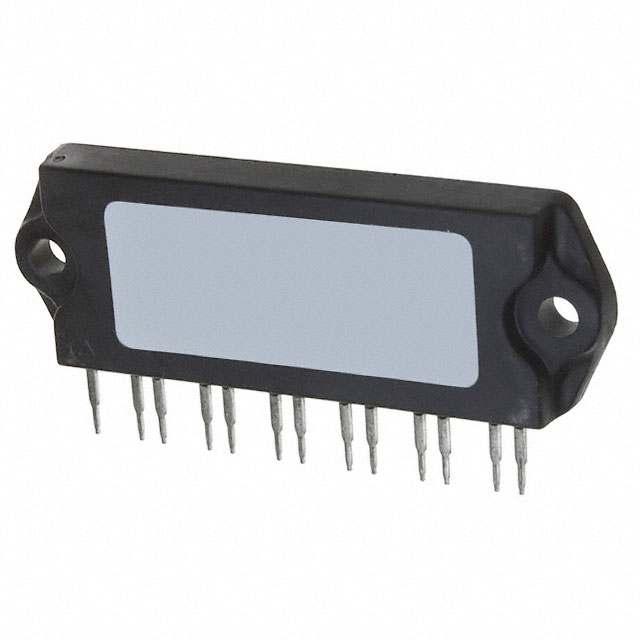

Vishay / Semiconductor - Diodes Division CPV364M4U

IGBT SIP MODULE 600V 10A IMS-2

41.09

Vishay / Semiconductor - Diodes Division CPV363M4K

IGBT SIP MODULE 600V 6A IMS-2

41.09

IXYS IXGN100N170

IGBT 1700V 160A GENX3 SOT-227B

44.5

Microsemi Corporation APTGT35A120T1G

IGBT MOD TRENCH PHASE LEG SP1

44.23

Microsemi Corporation APTGTQ100SK65T1G

POWER MODULE - IGBT

43.39

Infineon Technologies FF150R12YT3BOMA1

IGBT MODULE VCES 1200V 150A

47.19
