Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

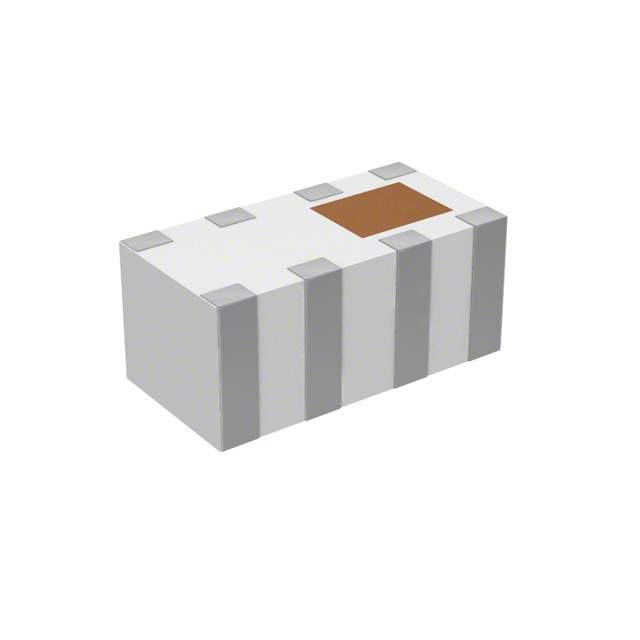

Anaren BD2425N5075AHF

BALUN 2.4GHZ-2.5GHZ 50/75 0404

0.31

Anaren BD2327N50100AHF

BALUN 2.3GHZ-2.7GHZ 50/100 0404

0.31

Anaren BD1416N50100AHF

BALUN 1.4GHZ-1.6GHZ 50/100 0404

0.31

Anaren BD2425N100ATI

BALUN 2.3GHZ-2.6GHZ 0404

0

Johanson Technology Inc. 2100BL15A100E

BALUN 2.1GHZ-2.2GHZ 50/100 0805

0.31

Johanson Technology Inc. 2450PC14A0017T

BALUN DUAL 0603 8 PC PAD

0.31

Anaren BD3438J50200AHF

BALUN 3.4GHZ-3.8GHZ 50/200 OHM

0.29

Anaren BD2425J50200AHF

BALUN 2.4GHZ-2.5GHZ 50/200 0805

0.29
