Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

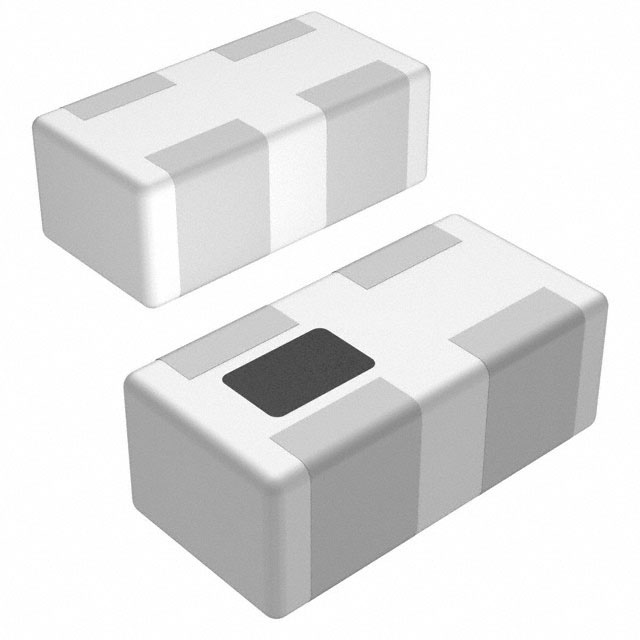

TDK Corporation HHM1902A1

BALUN 2.4GHZ-2.5GHZ 50/50 0402

0

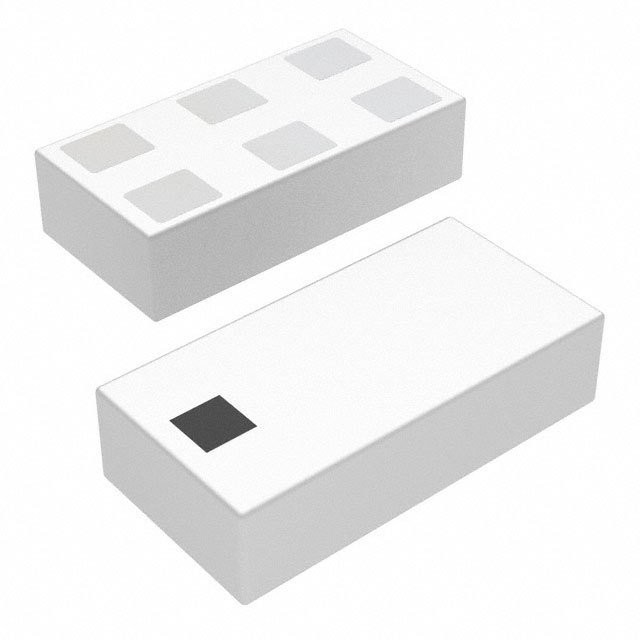

TDK Corporation HHM17125D1

BALUN 2.4GHZ-2.5GHZ 50/50 0603

0

TDK Corporation HHM1946A1

BALUN 2.3GHZ-2.7GHZ 50/100 0402

0

TDK Corporation HHM1904C1

BALUN 2.4GHZ-2.5GHZ 50/75 0402

0

TDK Corporation HHM1589B1

BALUN 470MHZ-710MHZ 6SMD

0

Johanson Technology Inc. 4000BL14U100T

BALUN 3.1GHZ-4.8GHZ 50/100 0603

0

Johanson Technology Inc. 3600BL14M100T

BALUN 3.3GHZ-3.9GHZ 50/100 0603

0

Johanson Technology Inc. 3600BL14M050T

BALUN 3.3GHZ-3.9GHZ 50/50 0603

0
