Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

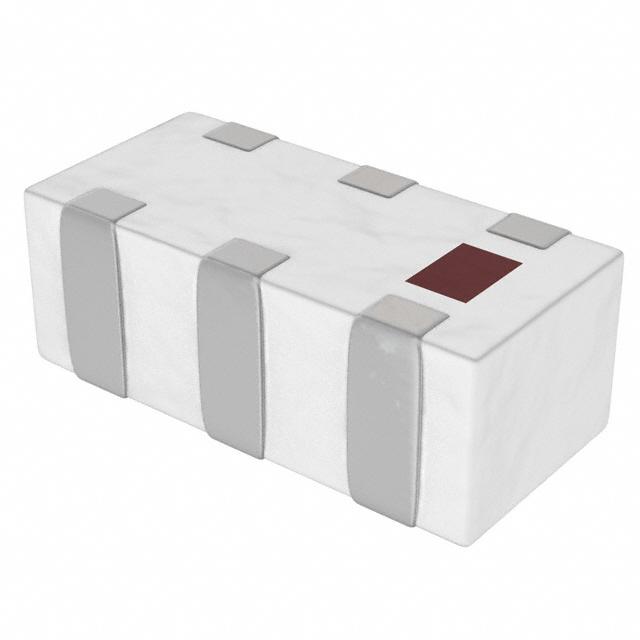

TDK Corporation HHM1548E1

BALUN 3.2GHZ-3.9GHZ 50/200 0805

0

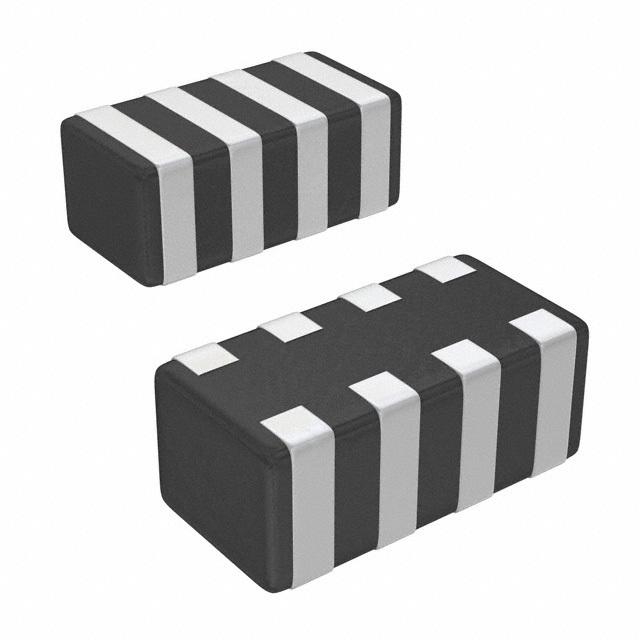

TDK Corporation HHM1791A1

BALUN 2.5GHZ-2.7GHZ 50/100 0603

0

Murata Electronics DXP2ABN7514TL

BALUN 50MHZ-870MHZ 75/300 0804

0

TDK Corporation HHM1583B1

BALUN 3.1GHZ-4.9GHZ 50/100 0805

0

Johanson Technology Inc. 1600BL15B100E

BALUN 1.5GHZ-1.7GHZ 50/100 0805

0

Johanson Technology Inc. 3700BL15B200E

BALUN 3.4GHZ-4GHZ 50/200 0805

0

Johanson Technology Inc. 0915BM15A0001E

BALUN 902MHZ-928MHZ 0805

0

Johanson Technology Inc. 1850BL15A050E

BALUN 1.7GHZ-2GHZ 50/50 0805

0
