Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

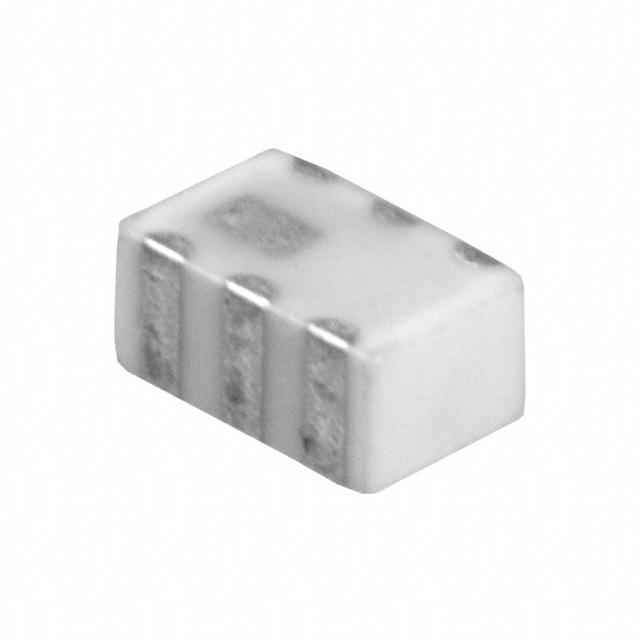

Panasonic Electronic Components EHF-FD1622

BALUN 700MHZ-900MHZ 50/200 0606

0.62

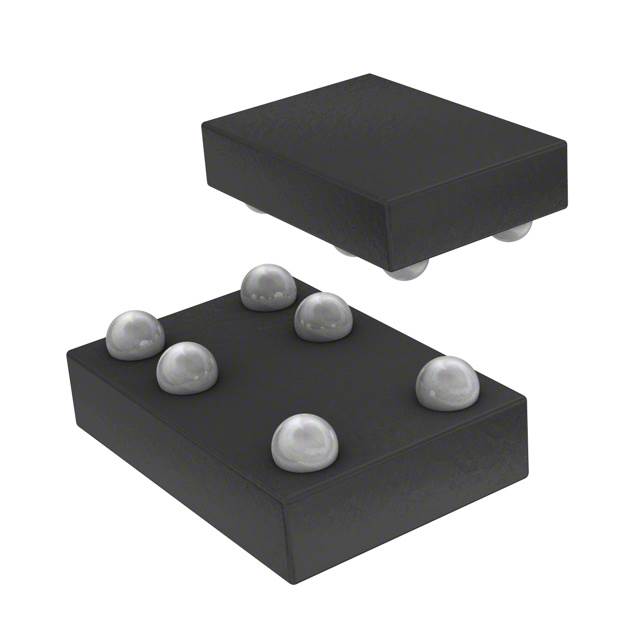

STMicroelectronics BALF-SPI2-01D3

BALUN 868MHZ-928MHZ 50/50 6UFBGA

0.55

STMicroelectronics BALF-SPI-02D3

BALUN 434MHZ 6WFBGA FCBGA

0

STMicroelectronics BALF-SPI-01D3

BALUN 779MHZ-956MHZ 6UFBGA FCBGA

0

STMicroelectronics BAL-CC25-01D3

BALUN 2.379GHZ-2.507GHZ 4UFBGA

0

TDK Corporation HHM1521

BALUN 2.4GHZ-2.5GHZ 50/200 0805

0

TDK Corporation HHM1516

BALUN 1.71-1.99GHZ 50/200 0805

0

Murata Electronics LDB182G4505C-110

BALUN 2.4GHZ-2.5GHZ 50/50 0603

0
