Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

TDK Corporation HHM1570B1

BALUN 4.9GHZ-5.95GHZ 50/100 0805

0

TDK Corporation HHM1596A1

BALUN 3.1GHZ-4.9GHZ 50/100 0805

0

TDK Corporation HHM1526

BALUN 1.71-1.99GHZ 50/100 0805

0

STMicroelectronics BAL-UWB-01E3

BALUN FOR UWB 3HGZ TO 8GHZ

0

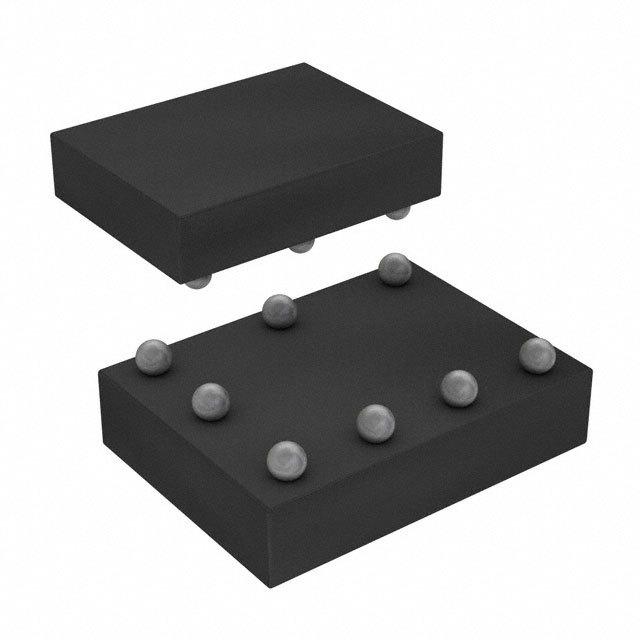

STMicroelectronics BALF-112X-01D3

BALUN 868MHZ-928MHZ 50/50 8UFBGA

0

TDK Corporation HHM1776B3

BALUN 880MHZ-960MHZ 50/50 0603

0.58

TDK Corporation HHM1733B1

BALUN 4.9GHZ-5.95GHZ 50/50 0603

0

Panasonic Electronic Components EHF-FD1620

BALUN 900MHZ-1.35GHZ 50/200 0606

0.62
