Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

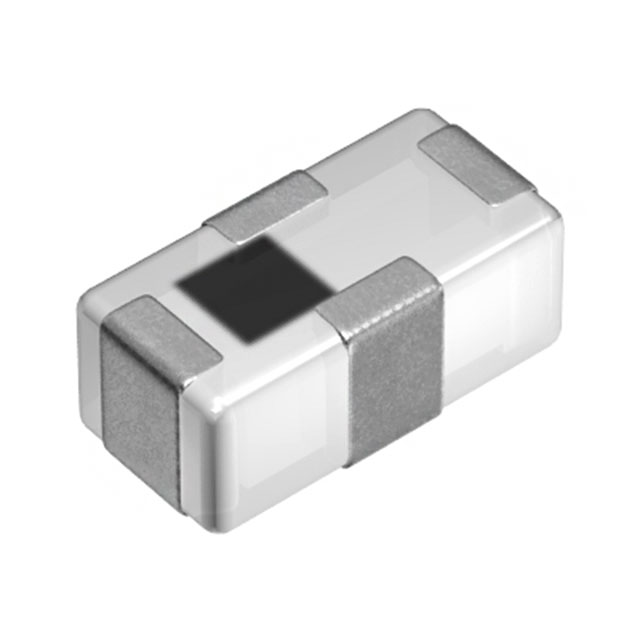

TDK Corporation HHM1779B1

BALUN 2.11-2.17GHZ 50/100 0603

0

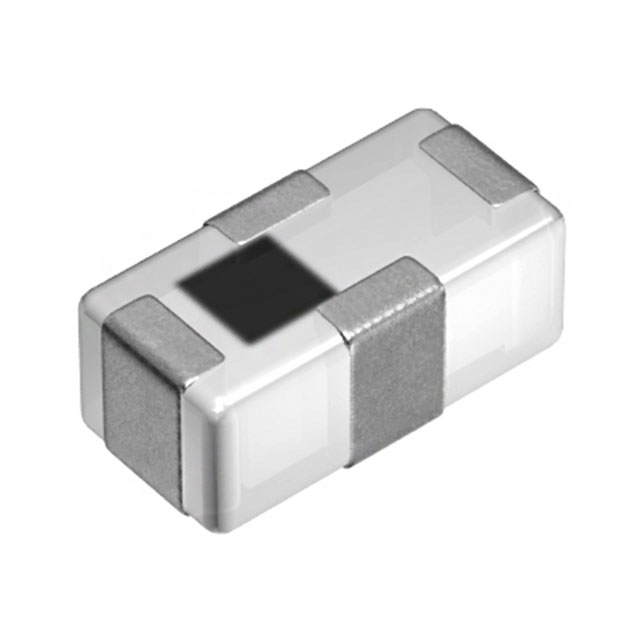

TDK Corporation HHM17146A1

BALUN 1.92GHZ-2.17GHZ 50/50 0603

0.35

TDK Corporation HHM17139B2

BALUN 2.4GHZ-2.6GHZ 50/50 0603

0

TDK Corporation HHM1727D1

BALUN 3.3GHZ-3.9GHZ 50/50 0603

0

TDK Corporation HHM1902B1

BALUN 2.4GHZ-2.5GHZ 50/50 0402

0.32

TDK Corporation HHM1917A5

BALUN 2.4GHZ-2.5GHZ 50/50 0402

0

TDK Corporation HHM1918A2

BALUN 2.3GHZ-2.7GHZ 50/100 0402

0

Abracon LLC. ABT-8-75-3-T

BALUN 1GHZ-1.5GHZ 75/75 MODULE

0.69
