Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

Johanson Technology Inc. 0434BM15B0027E

BALUN 431MHZ-437MHZ 50 0805

0

Johanson Technology Inc. 0896BM15A0032E

BALUN 863MHZ-928MHZ 0805 6 LEAD

0

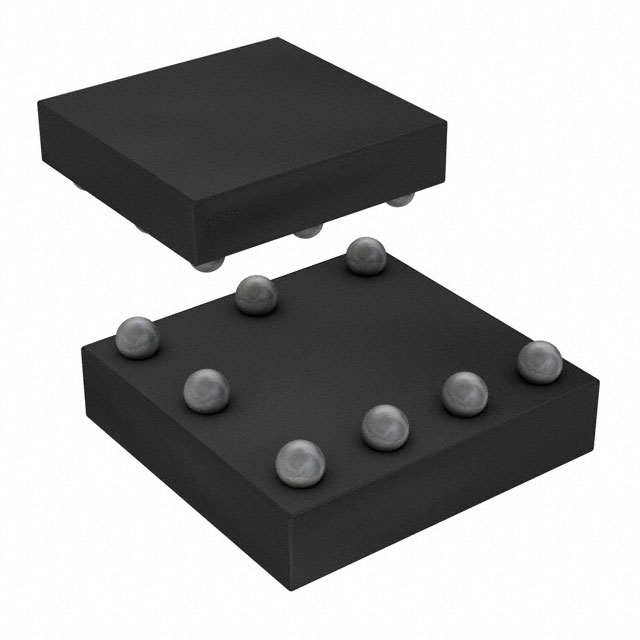

STMicroelectronics BALF-112X-02D3

BALUN 431MHZ-436MHZ 50/50 8UFBGA

0

TDK Corporation HHM1545

MULTILAYER BALUN FOR 3400 - 4010

0

TDK Corporation HHM1522E3

MULTILAYER BALUN FOR 680-1100MHZ

0

TDK Corporation HHM1589D1

MULTILAYER BALUN FOR 350 - 950MH

0

TDK Corporation HHM1533

MULTILAYER BALUN FOR 1920 - 2170

0

TDK Corporation HHM1591A2

MULTILAYER CHIP BALUNS

0.65
