Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

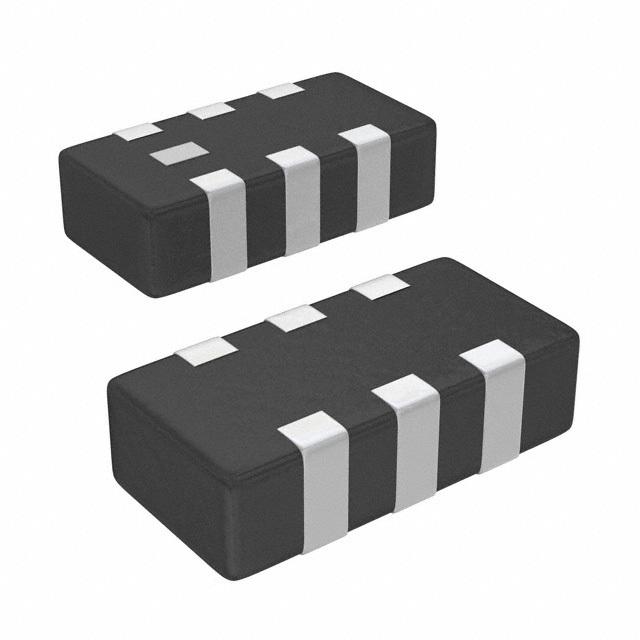

Walsin Technology Corporation RFBLN1608050AM8T62

BALUN 2.4GHZ-2.5GHZ 50/50 6SMD

0

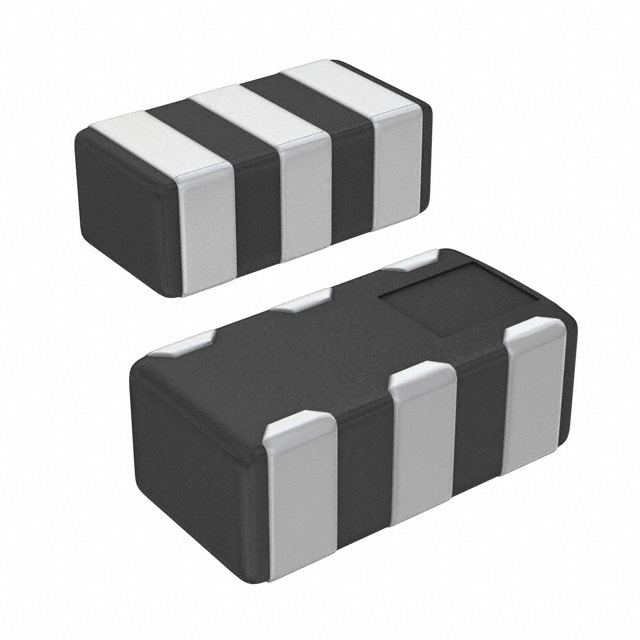

Susumu TBL-1608-245-M2

BALUN 2.4GHZ-2.5GHZ 50/100 0603

0

Murata Electronics DXP18BN5016DL

BALUN 470MHZ-870MHZ 50/300 0603

0.3

Anaren BD3238N5050AHF

ULTRA LOW PROFILE SUB MINI

0.31

Anaren BD4859N50150AHF

BALUN 4.8GHZ-5.9GHZ 50/150 0404

0.31

Anaren BD2425N50AIR

BALUN 4SMD NO LEAD

0.31

M/A-Com Technology Solutions MABA-007532-CF18A0

BALUN 5MHZ-200MHZ 1:1

0.8

Anaren BD170240N50100AHF

BALUN 17.7-23.6GHZ 50/100 0404

0.78
