Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

Johanson Technology Inc. 4400BL15A0100E

BALUN 2.8GHZ-6GHZ 1:2

0

TDK Corporation HHM1564A4

BALUN 824MHZ-894MHZ 50/200 0805

0

TDK Corporation HHM1525

BALUN 1.71GHZ-1.99GHZ 50/50 0805

0

TDK Corporation HHM1711D1

BALUN 2.4GHZ-2.5GHZ 50/100 0603

0

Johanson Technology Inc. 0900BL18B100E

BALUN 800MHZ-1GHZ 50/100 1206

0

Johanson Technology Inc. 0900BL18B200E

BALUN 800MHZ-1GHZ 50/200 1206

0

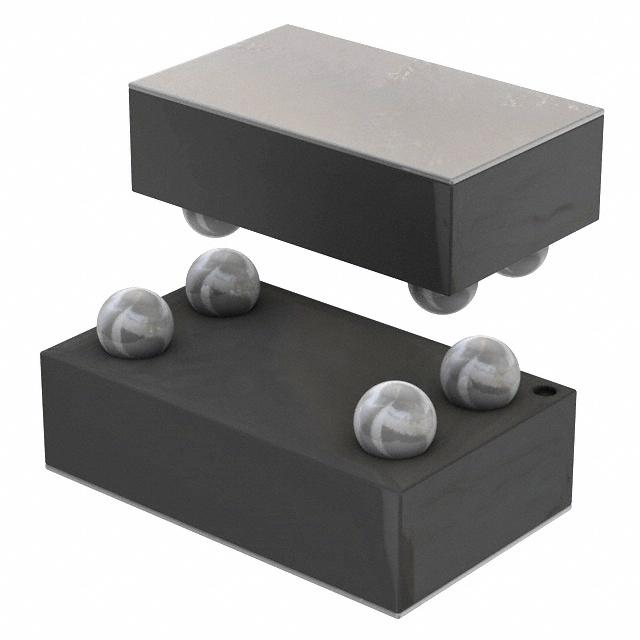

STMicroelectronics BALF-NRG-01D3

BALUN 2.4GHZ-2.5GHZ 50/50 4WFBGA

0

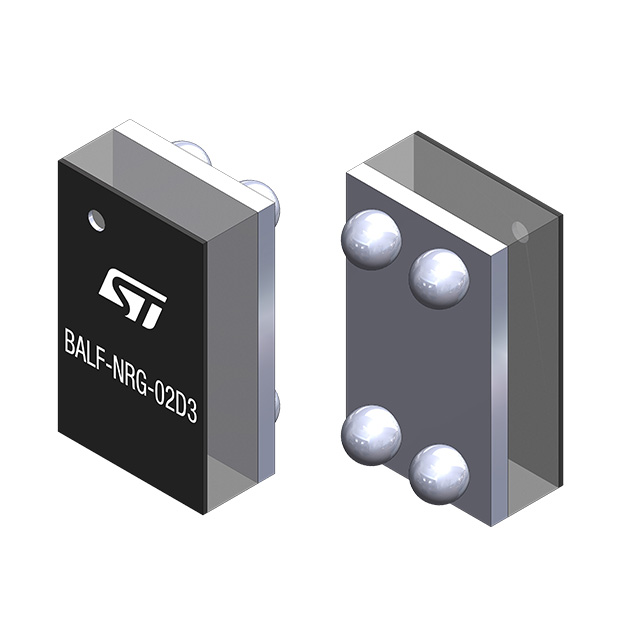

STMicroelectronics BALF-NRG-02D3

BALUN 2.4GHZ-2.5GHZ 50/50 4UFBGA

0
