Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

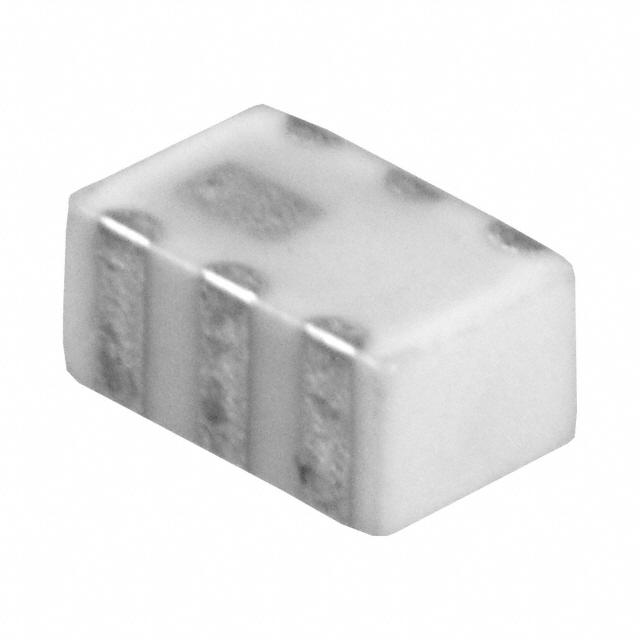

TDK Corporation HHM1520

BALUN 2.4GHZ-2.5GHZ 50/100 0805

0

TDK Corporation HHM1517

BALUN 2.4GHZ-2.5GHZ 50/50 0805

0.41

Johanson Technology Inc. 2450BL15B200E

BALUN 2.4GHZ-2.5GHZ 50/200 0805

0

Murata Electronics LDB212G4020C-001

BALUN 2.3GHZ-2.5GHZ 50/200 0805

0

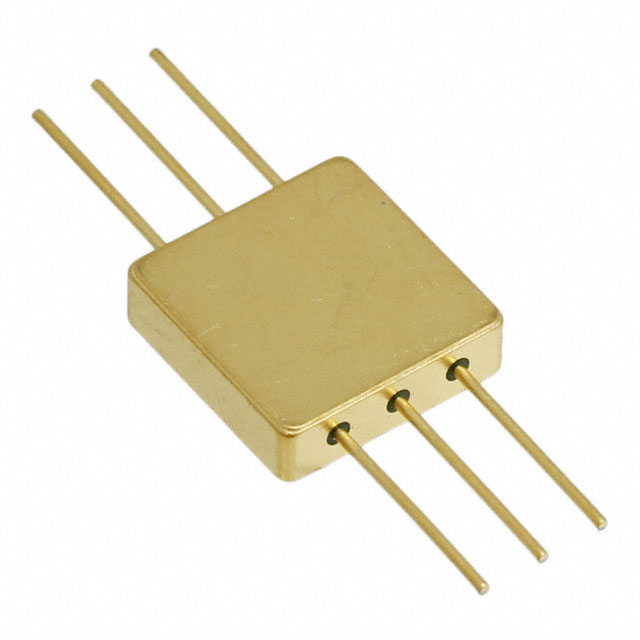

M/A-Com Technology Solutions TP-101-PIN

BALUN 500KHZ-1.5GHZ 50/50 6FLTPK

101.69

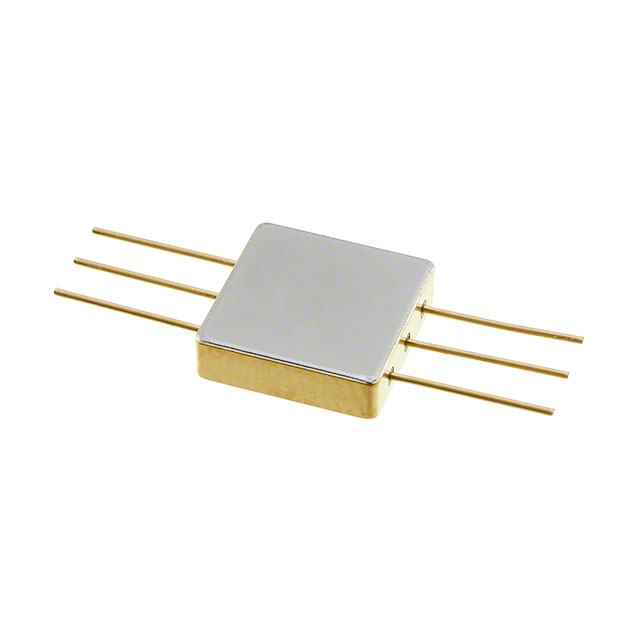

M/A-Com Technology Solutions TP-103-PIN

BALUN 500KHZ-1GHZ 50/200 6FLTPAK

95.82

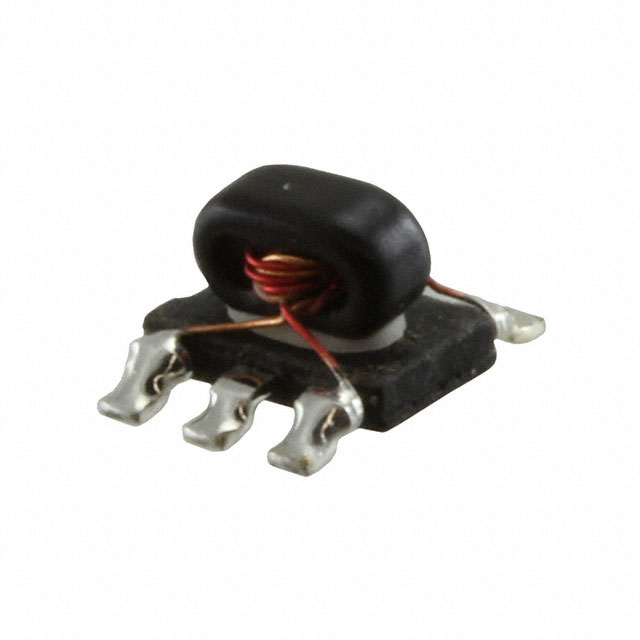

Pulse Electronics Network CX2078NL

BALUN 5MHZ-500MHZ 50/50 6SMD GW

3.63

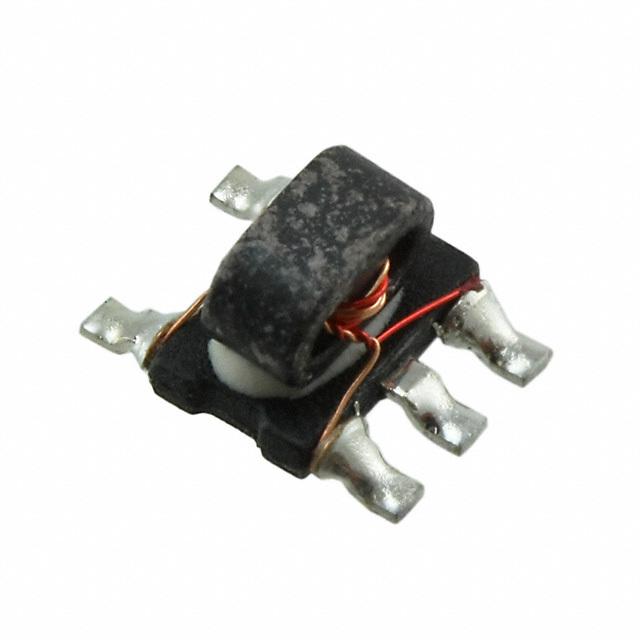

Pulse Electronics Network CX2156NL

BALUN 2.3MHZ-2.7GHZ 1:1 5SMD

3.25
