Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

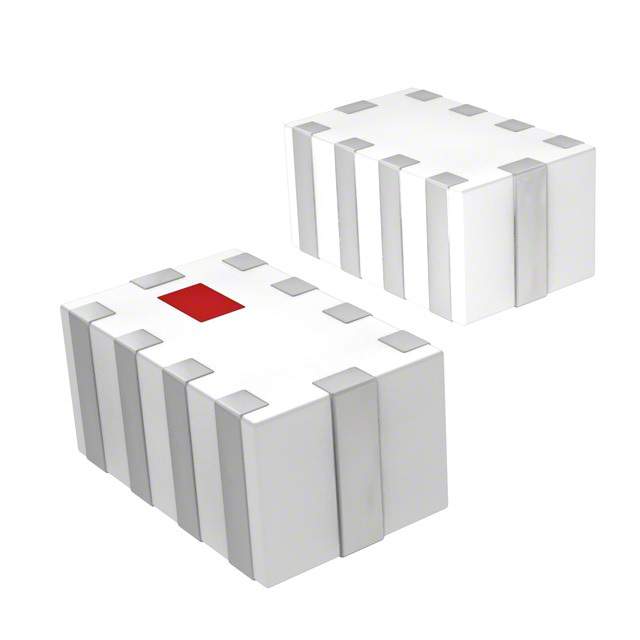

Johanson Technology Inc. 0900PC15J0013E

BALUN 868-928MHZ 0805 10 PC PAD

1.07

Johanson Technology Inc. 2450FB15L0001E

BALUN 2.4GHZ-2.5GHZ 0805

0

Johanson Technology Inc. 2450BM15A0015E

BALUN 2.4GHZ-2.5GHZ 0805

0

Anaren BD0826J50200AHF

BALUN 800MHZ-2.6GHZ 50/200 0805

0

Anaren B0310J50100AHF

BALUN 300MHZ-1GHZ 50/100 0805

0

Johanson Technology Inc. 2450BM14A0002T

BALUN 2.4GHZ-2.5GHZ 0603

0

TDK Corporation HHM1732B1

BALUN 4.9GHZ-5.95GHZ 50/100 0603

0

Johanson Technology Inc. 0896BM15A0001E

BALUN 863MHZ-928MHZ 0805

0
