IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

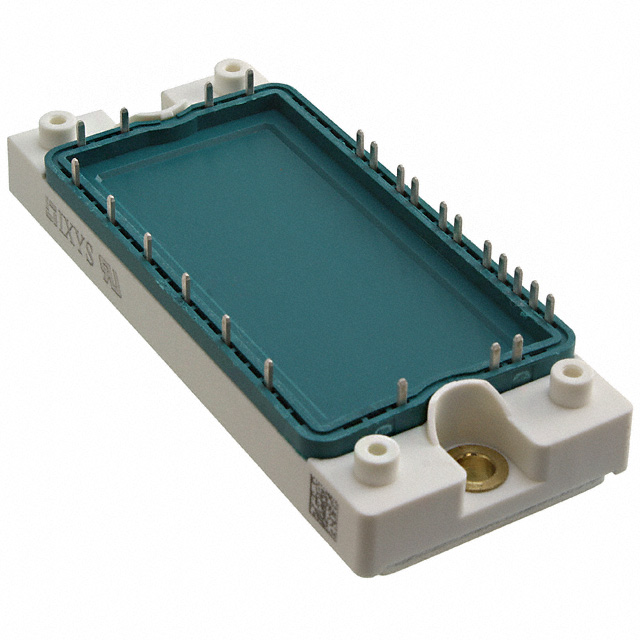

IXYS MUBW10-06A7

CONVERTER/BRAKE/INVERTER 1.9VCE

55.95

IXYS MKI50-06A7

MOD IGBT H-BRIDGE 600V 72A E2

55.78

IXYS VKI75-06P1

MOD IGBT H-BRIDGE 600V ECO-PAC2

55.77

Infineon Technologies FS75R07W2E3B11ABOMA1

IGBT MODULES

55.75

Vishay / Semiconductor - Diodes Division VS-70MT060WSP

IGBT 600V 96A 378W MTP

55.62

Microsemi Corporation APTGL90A120T1G

MOD IGBT 1200V 110A SP1

55.5

Vishay / Semiconductor - Diodes Division VS-20MT120UFP

IGBT 1200V 40A 240W MTP

55.19

Vishay / Semiconductor - Diodes Division VS-20MT120UFAPBF

IGBT 1200V 20A 240W MTP

55.19
