IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

Infineon Technologies DF120R12W2H3B27BOMA1

IGBT MODULE 800V 50A

54.27

Vishay / Semiconductor - Diodes Division VS-GT140DA60U

IGBT 600V 200A 652W SOT-227

54.09

IXYS MUBW45-12T6K

MODULE IGBT CBI E1

54.08

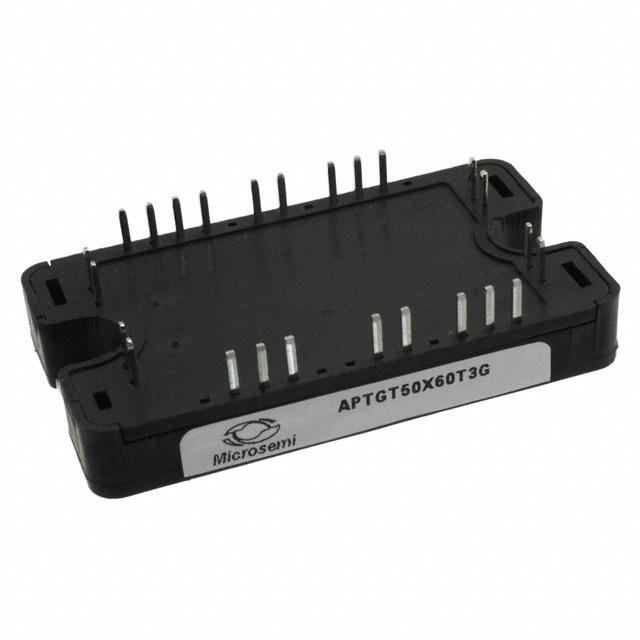

Microsemi Corporation APTGT50X60T3G

IGBT TRENCH 3PHASE BRIDGE SP3

54.07

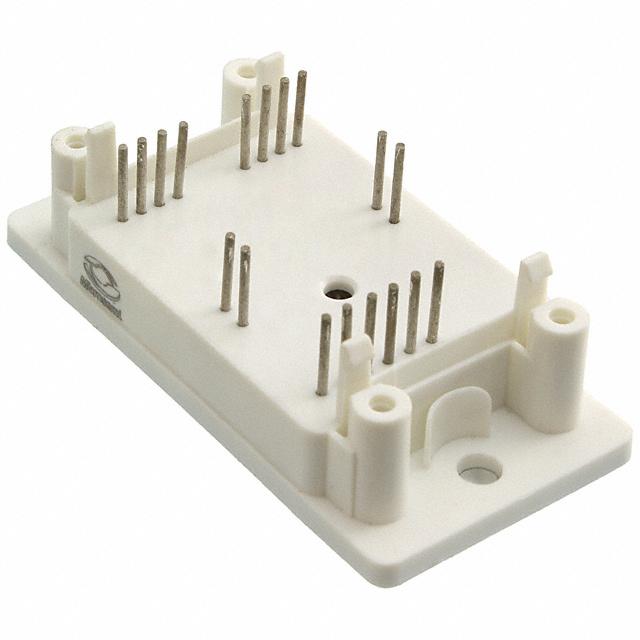

Microsemi Corporation APTGLQ40H120T1G

PWR MOD IGBT4 1200V 75A SP1

53.95

Microsemi Corporation APTGT200A602G

POWER MOD IGBT3 PHASE LEG SP2

53.92

IXYS MIXA40W1200TED

IGBT MODULE 1200V 40A

53.3

IXYS MID145-12A3

MOD IGBT RBSOA 1200V 160A Y4-M5

53.11
