IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

Microsemi Corporation APTGF180DU60TG

IGBT MODULE NPT DUAL SP4

0.2

Microsemi Corporation APTGF30X60T3G

IGBT MODULE NPT 2PH BRIDGE SP3

0.2

Microsemi Corporation APTGF30H60T3G

POWER MOD IGBT NPT FULL BRDG SP3

0.2

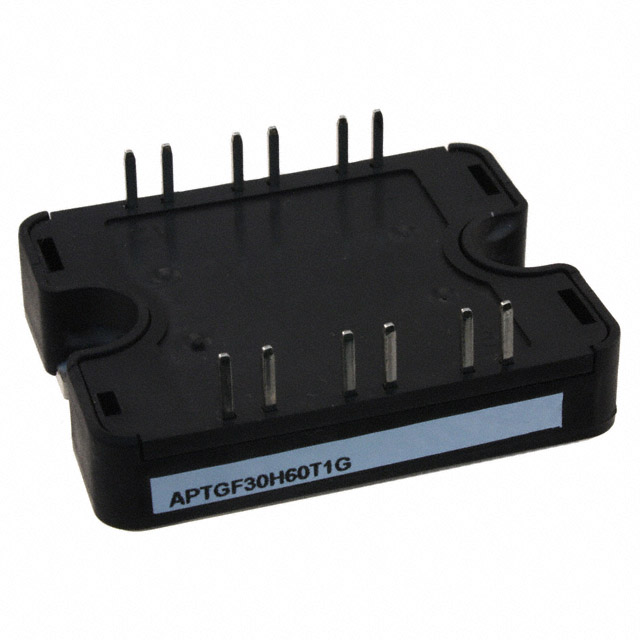

Microsemi Corporation APTGF30H60T1G

IGBT MODULE NPT FULL BRIDGE SP1

0.2

Microsemi Corporation APTGF50SK120TG

IGBT 1200V 75A 312W SP4

0.2

Microsemi Corporation APTGF50SK120T1G

IGBT 1200V 75A 312W SP1

0.2

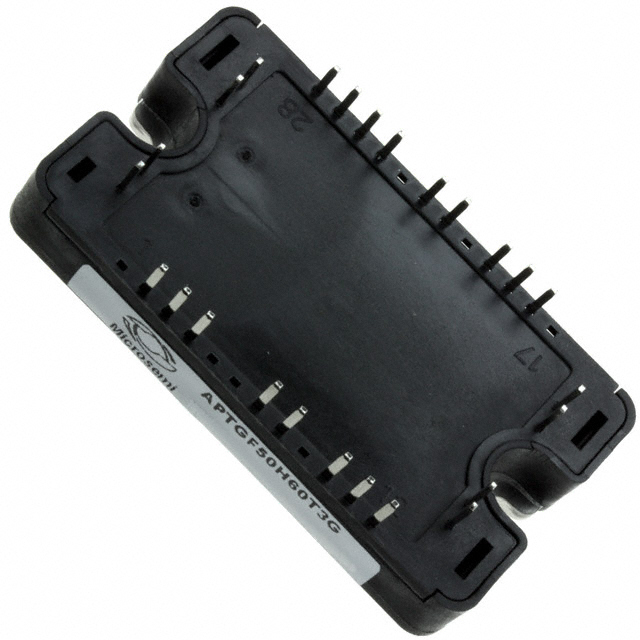

Microsemi Corporation APTGF50H60T3G

POWER MODULE IGBT 600V 50A SP3

0.2

Microsemi Corporation APTGF90TA60PG

IGBT MODULE NPT TRPL PHASE SP6P

0.2
